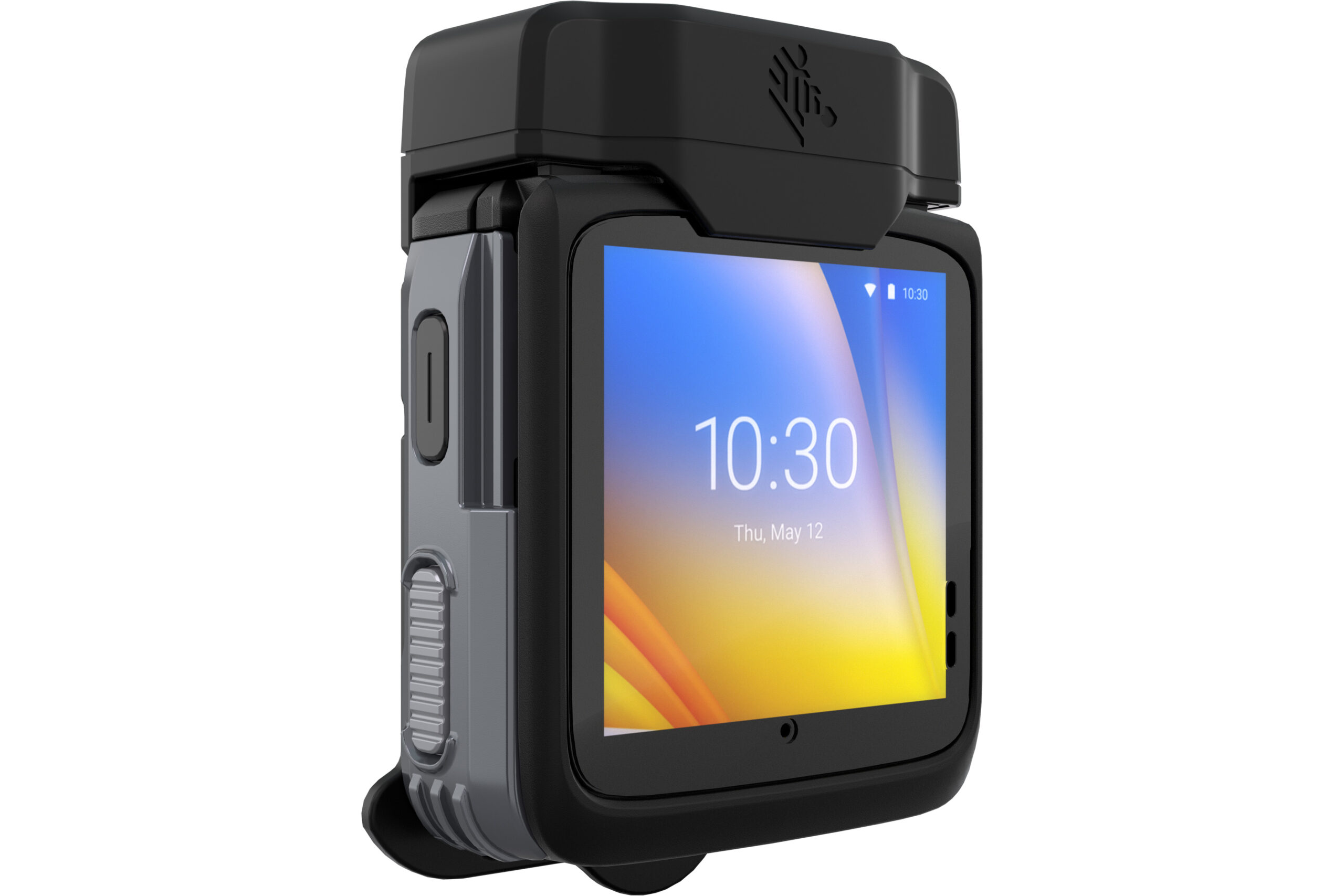

Zebra – WS50 Android Wearable Computer
The WS50 Android Wearable Computer by Zebra is the world’s smallest enterprise-class wearable mobile computer, designed to enhance workforce productivity and efficiency across various industries. It boasts a modular design, allowing for multiple mounting options such as wrist, back of hand, and two-finger mounts, making it versatile and suitable for a wide range of tasks. This rugged device integrates powerful business-class voice and data features, ensuring workers can capture and access data with ease. With its Android platform, the WS50 provides a future-proof solution that can adapt to new features over time. The device is built to withstand extreme conditions, ensuring reliable performance in diverse environments like manufacturing, warehousing, retail, and hospitality. Its lightweight and ergonomic design ensures comfort and ease of use throughout the workday. The WS50 eliminates the need for multiple devices, offering a true converged wearable solution with advanced data capture and push-to-talk capabilities.
Specification
- CPU: Qualcomm® Snapdragon Wear W4100+ Platform/SDA429w, quad-core, 2.0 GHz
- Operating System: Android 11 AOSP
- Memory: 1 GB RAM/8 GB Flash
- Operating Temperature: 14 F to 122 F / -10 C to +50 C
- Storage Temperature: -40 F to 158 F / -40 C to +70 C
- Humidity: 5% – 95% non-condensing
- Drop: Specification: Wrist model – 4 ft. / 2 m; Converged models – 6 ft. / 8 m to concrete
- Tumble Specification: Wrist model – 1,000 tumbles @6 ft. / 0.5 m; Converged models – 2,000 tumbles @6 ft. / 0.5 m
- Sealing: IP65
- Display: 2inch AMOLED, 460 x 460 color display
- Battery: Standard (Wrist) – 800 mAh; High Capacity (Converged) – 1300 mAh
- Connectivity: Wi-Fi, Bluetooth 4.2, NFC
- Weight: Wrist (device) – 2.47 oz. / 70 g; Converged models – 4.73 oz. / 134 g
- Data Capture: 13 MP camera (Wrist model); SE4770 1D/2D imager (Converged models)
- Audio: Speaker (90dBA), internal mic, Bluetooth headset support
- Physical Dimensions: Wrist (with mount) – 2.91 in. L x 2.51 in. W x 0.751 in. D; Converged – 2.52 in. L x 2.44 in. W x 10 in. D
Benefits
The WS50 offers unmatched flexibility with three mounting options: wrist, back of hand, and two-finger. This adaptability makes it ideal for diverse tasks across various industries, ensuring it fits perfectly into any workflow.
Equipped with push-to-talk (PTT) and task management applications, the WS50 enables instant communication and efficient task execution. Its built-in 13 MP camera and advanced barcode scanning enhance productivity and accuracy.
Designed to endure harsh environments, the WS50 features IP65 sealing, drop and tumble resistance, and a robust AMOLED display. It guarantees reliable operation under extreme conditions, ensuring continuous performance in demanding settings.
Related Products
The ID ECCO Smart is a versatile hybrid handheld device that combines a barcode scanner and a powerful RFID reader. With the unique ID NFC MetalTag Antenna, it can easily detect, read, and write miniature transponders embedded in or attached to metal, plastic, or wood. It is designed for pinpoint accuracy and can be used in various applications such as maintenance and service, inventory, asset tracking, and parts management. Its robust housing and user-friendly design make it suitable for use in harsh environments.
- Dimensions: 87 mm x 48 mm x 26 mm
- Weight: approximately 98 g
- Housing: double-walled, rubber coated
- Color: black, red
- Protection class: IP54
- RF operating frequency: 13.56 MHz
- RF transmitting power:5 W HF Reader IC
- Supported transponders: ISO 15693
- Barcode: EAN-8, EAN-13, ISBN, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2of5, Interleaved 2of5, UCC/EAN-128
- Interfaces: Bluetooth LE V5.0, Gatt profile, BLE HID, USB-HID
- Battery: 1,300 mAh Lithium Polymer battery; 3.7 V
- Operating time: up to 16 h
- Indicators: 4 LEDs (red, green, yellow, blue), Buzzer, vibration feedback
- Keys: 4 keys (ON/OFF, configurable)
- CPU: Dual Core Processor
- Memory: 256 KB RAM / 1 MB Flash
- Supported OS: USB: Win 10 (32 and 64 Bit) BLE: iOS from V13.3.1 & Android from V9.0
- Bluetooth LE GATT profile: FEIG Data Services and FEIG standard protocol
- Shock resistance:6 m drop on concrete
- Temperature range: Operation:-20 degree C up to +55 degree C (-4 F up to +131 F), Storage:-20 degree C up to +60 degree C (-4 F up to +140 F), Battery load: 0 degree C up to +45 degree C (+32F up to +113 F)
- Humidity: 5 % up to 95 % (non condensing)
- Certificates: RoHS, WEEE, CE, FCC, IC
The ID ECCO Smart 2D-HF-BLE is a compact and robust RFID and barcode scanner with a powerful NFC interface. It is designed for efficient working with standard RFID transponders and 1D/2D barcodes. With its high-performance scan engine and Bluetooth LE 5.0 technology, it is a future-proof investment for mobile applications. The device is ideal for industries such as LED lighting, transport and logistics, healthcare, and libraries.
- Dimensions: 87 mm x 48 mm x 26 mm
- Weight: 98 g
- Housing: Double-walled, rubber coated
- Color: Black, red
- Protection class: IP54
- Operating frequency: 13.56 MHz
- Transmitting power:5 W HF Reader IC
- Supported transponders: ISO 15693
- Barcode: 1D symbol sets (EAN-8, EAN-13, ISBN, UPC-A, UPC-E, Code 128, Code 39, Code 93, Codabar, Industrial 2of5, Interleaved 2of5, UCC/EAN-128) and 2D symbol sets (Datamatrix, QR Code, PDF417)
- Interfaces: USB Serial, Bluetooth LE V4.2 & V5.0
- Battery: 1300 mAh Lithium Polymer; 3.7 V
- Operating time: Up to 16 hours
- Indicators: 4 LEDs (red, green, yellow, blue), buzzer, vibrations feedback
- Keyboard: 4 keys (ON/OFF, Trigger 2 x configurable)
- CPU: Dual Core Processor
- Memory: 256 KB RAM / 1 MB Flash
- Supported OS: USB: Win 10 (32 and 64 Bit), BLE: iOS from V13.3.1 & Android from V9.0
- Bluetooth Interface: Zhaga Book 25 services and protocol
- Bluetooth LE GATT profile: FEIG Data Services and FEIG standard protocol
- Shock resistance:6 m drop on concrete
- Temperature range: Operation: -20 degree C up to +55 degree C, Storage: -20 degree C up to +60 degree C, Battery load: 0 degree C up to +45 degree C
- Humidity: 5% up to 95% (non-condensing)
- Certificates: RoHS, WEEE, CE, FCC, IC
The ID ANT1710/690 Crystal Gate Wave HF Gate Antenna is a high-performance RFID solution that offers excellent 3D identification rates and a comfortable passage width of up to 130 cm. With its transparent design and integrated radar people counter, it provides a cost-effective and flexible solution for various applications. The antenna is easy to install and comes with comprehensive service software for seamless integration into existing systems. It also offers optional functions such as extended people counting capabilities and customizable base covers. With flexible IT integration options and international approvals, this antenna is a modern and reliable choice for RFID applications.
- Dimensions (w x h x d): 690 mm x 1764 mm x 77 mm
- Weight: Type A – approx. 25 kg/29.5 kg with packaging, Type B – approx. 24 kg/28.1 kg with packaging
- Housing: Acrylic glass and ABS UV stabilized
- Color: Crystal clear (acrylic panel), signal white (base), more colors available on request
- Supply voltage: 24 V DC ±15%
- Power consumption: max. 32 VA
- Operating frequency: 13.56 MHz
- Antenna tuning: ID ISC DAT (automatic)
- Alarm functions: Automatic without host connection; with optical and acoustic indicator; EAS, AFI, UID/SNR
- Transponders: ISO 15693, ISO 18000-3 Mode 1, NXP I-Code 1
- Interfaces: USB, Ethernet
- Aisle width: Unidimensional – up to 130 cm (51.2 inches), Tridimensional – up to 120 cm (47.2 inches)
- Temperature range: Operation -25degree C up to +50degree C, Storage -25degree C up to +70degree C
The ID SPAD.U is a shielded UHF desktop reader with integrated antennas, designed for contactless data exchange with UHF transponders. With its flat and modern design, it offers maximum reliability and excellent reading performance. It is suitable for various markets, including laundries, libraries, and retail, and can be used for applications such as laundry logistics, library item tracking, and file/document tracking.
- Dimensions: 376 mm x 276 mm x 26.8 mm
- Weight: approximately 2.0 kg
- Housing: Upper part – Plastic ABS, Cover plate – Acrylic glass (PMMA XT), Lower part – Galvanized metal sheet
- Protection class: IP30
- Power supply: 12 to 24 V DC ±15%
- Power consumption: max. 7 VA
- Operating frequency: 865 MHz to 868 MHz
- Transmitting power: 50 mW to 500 mW, configurable in up to 8 steps
- Interface: USB
- Reader modes: ISO Host Mode, Buffered Read Mode, Scan Mode
- Supported transponders: EPC Class1 Gen2, ISO 18000-6-C (optional)
- Indicators: LED green, red, orange (mixed color), Buzzer
- Temperature range: Operation -25 degree C to +55 degree C, Storage -25 degree C to +70 degree C
- Relative humidity: 5% to 95% (non-condensing)
- Radio approval: Europe – EN 302 208, EMC – EN 301 489
- Safety: Low Voltage – EN 62368-1, Human Exposure – EN 50364
The Wiegand Switch ID ISC.LR.WS-A is a cost-effective and compact solution for multilane vehicle access control installations. With just one UHF reader, it allows for the control of two independent lanes, providing reliable access control and clear cost advantages.
- Dimensions (w x h x d): 99 mm x 90 mm x 22.5 mm
- Weight: approx. 90 g
- Housing: Polyamide
- Color: RAL7035 (light grey)
- Power supply: 12 up to 24 V DC ±20%
- Power consumption: typ. < 2 W
- Supported readers: ID LRU1002, ID LRU500i-BD (further readers on request)
- Indicator: 2 green LED indicate the active Wiegand output
- Other features: Housing for DIN Rail Mounting, Signal improvement in case of communication problems between Access Control Panel and Reader
- Temperature range: Operation:-25 degree C up to +55 degree C, Storage:-40 degree C up to +85 degree C
- Humidity: 5% up to 95% (non-condensing)
- Vibration: EN 60068-2-6 10 Hz up to 150 Hz: 0.075 mm/1 g
- Shock: EN 60068-2-27 Acceleration: 30 g
- EMC: EN 301 489
- Safety: EN 62 368
The AT288N by ATID offers unparalleled efficiency in RFID data collection. With its advanced technology, this handheld reader empowers businesses to streamline their inventory management, asset tracking, and supply chain operations with precision and speed. Its ergonomic design ensures comfortable usage, while its robust build guarantees durability in various environments.
Elevate your RFID data collection capabilities with the AT288N by ATID. Engineered to excel in efficiency, this handheld reader revolutionizes inventory management, asset tracking, and supply chain operations. Its cutting-edge technology empowers businesses to capture data with unprecedented speed and accuracy, enhancing overall productivity and decision-making. Designed for user comfort and durability, the AT288N ensures seamless integration into diverse workflows, making it the ultimate solution for optimizing operational efficiency and gaining actionable insights.
- Supported protocols: UHF EPC Gen2, ISO / IEC 18000-6C, 6B, AEI (Rail)
- Connectivity: BT V2.1 + EDR / BLE V4.1
- Compatibility: Windows, Android & iOS Host
- Design: Compact & Handy design
- Drop: spec: 5m (5ft)
- IP65
- Reading Range: ~3M (According to Tag & Environment).
- Battery Life: a 3.7V 2,200mAh Lithium-Ion Battery (Rechargeable).
- Operating Temperature: -10degree C to 45degree C.
- Dimensions: 165mm x 75mm x 29mm
- Weight: 320 grams
