Times-7 A8065 Combo Door Frame Antenna

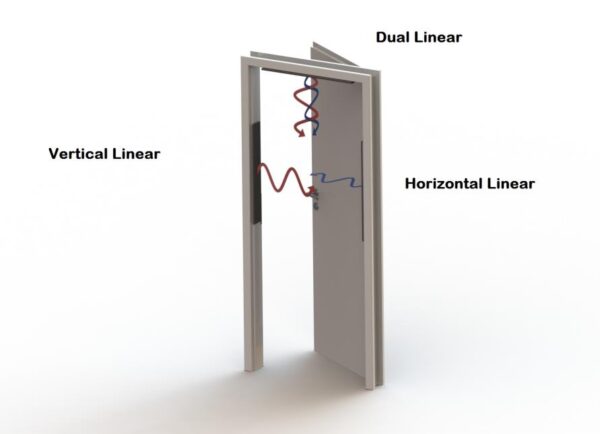

The SlimLine A8065 Combo is an innovative Doorway Portal Application that sets a new industry standard for RFID antenna performance. This elegantly designed solution combines three distinct antennas to provide complete 360° tag orientation read coverage. The combo includes the A8065V (Vertical Linear), A8065H (Horizontal Linear) for side mounting, and A8065D (Dual Linear) for overhead installation. With its ultra-slim profile of just 10.5mm (0.4″) thickness and 88mm (3.4″) width, the A8065 seamlessly integrates into door frames, making it ideal for high-traffic areas where space optimization is crucial. The unique configuration of polarizations ensures reliable tag reading regardless of orientation, making it perfect for applications such as item-level tracking in retail, conference attendee monitoring, and asset tracking in healthcare settings. Each antenna in the combo can be purchased individually or as a set, offering flexibility in deployment. The A8065 Combo’s sleek design, coupled with its exceptional performance, provides a discreet yet powerful RFID solution that can be easily installed in various environments without compromising aesthetics or functionality.
Specification

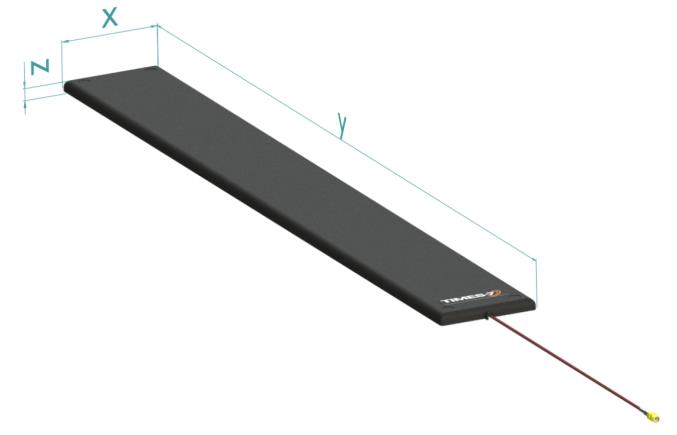

- Dimensions: 700 x 90 x 10.5mm (27.56″ x 3.54″ x 0.41″)
- Weight: 0.58kg (1.28lbs)
- Frequency Range: 865-868 MHz (ETSI) / 902-928 MHz (FCC)
- Polarization: Vertical Linear, Horizontal Linear, and Dual Linear
- Far-Field Gain: 3-7.5dBi typical (varies by antenna)
- VSWR:8-2.5 typical (varies by antenna)
- Maximum Input Power: 3W
- Environmental Rating: IP54
- Operating Temperature: -20degree C to +55degree C (-4F to +131F)
- Connector Type: SMA female lead
- Cable: RG-316 Cable, 300mm (1″) length
- Mounting: Integrated mounting guides / adhesive foam strip
- Antenna Detection: 10kohm resistance
- Radome Material: Flame retardant ABS
Benefits
The combination of vertical, horizontal, and dual linear polarizations ensures reliable tag reading from all angles. This comprehensive coverage maximizes read rates and eliminates blind spots in tag detection.
With a thickness of just 10.5mm, the A8065 Combo integrates seamlessly into door frames. Its sleek profile doesn’t compromise on performance, making it ideal for applications where aesthetics and space efficiency are crucial.
Suitable for various environments, from retail to healthcare. The A8065 Combo excels in item-level tracking, attendee monitoring, and asset management, providing a flexible solution for diverse RFID deployment scenarios.
