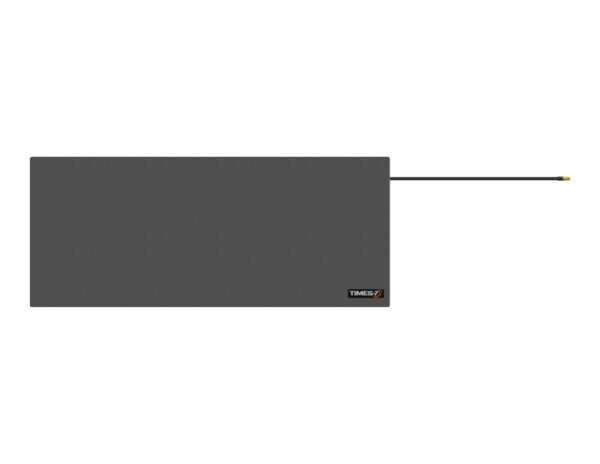

Times-7 – A7060 SlimLine™ LP RAIN (UHF) RFID Antenna
The A7060 is a high-performance, linearly polarized UHF RFID antenna from Times-7’s SlimLine™ series, designed specifically for real-time inventory management and asset tracking in shelf, cabinet, and toolroom environments. Measuring just 8 mm thick and stretching 600 mm in length, the A7060 provides a sleek yet powerful RFID solution with up to 9 dBi gain. It is ideal for applications such as jewelry tracking, smart shelving, and industrial tool monitoring—enabling accurate item detection without compromising on space or design. Its rugged IP54 housing, fire-retardant construction, and modular compatibility make the A7060 a trusted option for commercial and semi-industrial deployments.
Specification
-
Frequency Range:
-
ETSI: 864–868 MHz
-
FCC: 902–928 MHz
-
-
Polarization: Linear
-
Far-Field Gain: 9 dBi (typical)
-
Beamwidth (3 dB): 30° (XZ), 65° (YZ)
-
VSWR: 1.6 (typical)
-
Front-to-Back Ratio: 24 dB
-
Nominal Impedance: 50 Ω
-
Max Input Power: 3 W
-
Anti-Static Protection: Yes (DC grounded)
-
Antenna Detection: 10 kΩ resistance
Physical & Environmental:
-
Dimensions: 600 x 250 x 8 mm (23.62” x 9.84” x 0.31”)
-
Weight: 1.2 kg / 2.6 lbs
-
Material: Flame-retardant ABS
-
Connector: SMA female, side-mounted fly lead (300 mm)
-
Environmental Rating: IP54
-
Operating Temp: –20 °C to +55 °C
-
Storage Temp: –30 °C to +65 °C
Benefits
At just 8 mm thick, the A7060 delivers strong, directional RFID coverage—perfect for integrating into shelves, panels, or enclosures without visual clutter.
From jewelry counters to industrial workshops, the A7060 enables accurate, real-time tracking of products, tools, and assets—helping streamline operations and prevent loss.
Built with IP54 environmental protection, fire-retardant materials, and anti-static grounding, the A7060 is durable enough for commercial and light industrial settings.
