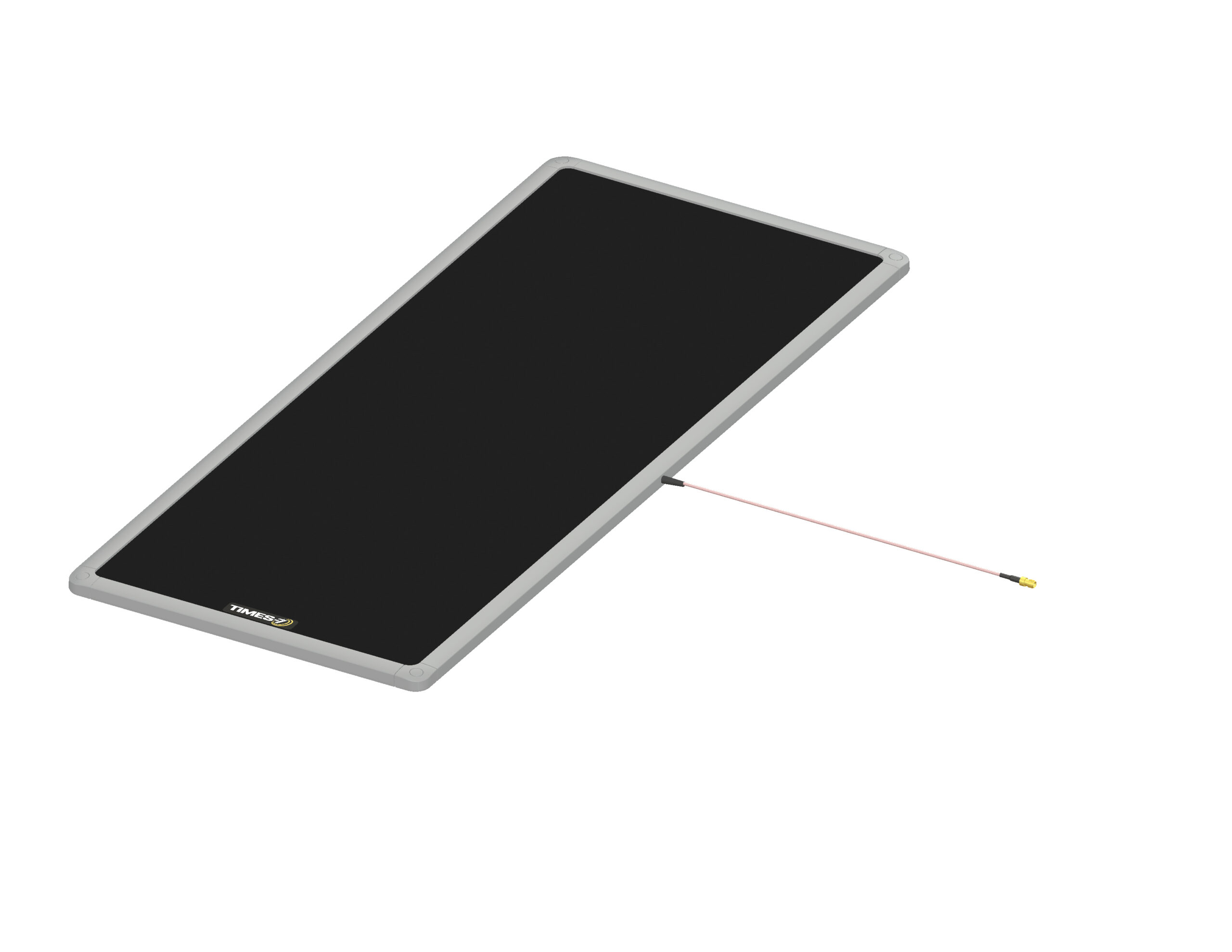

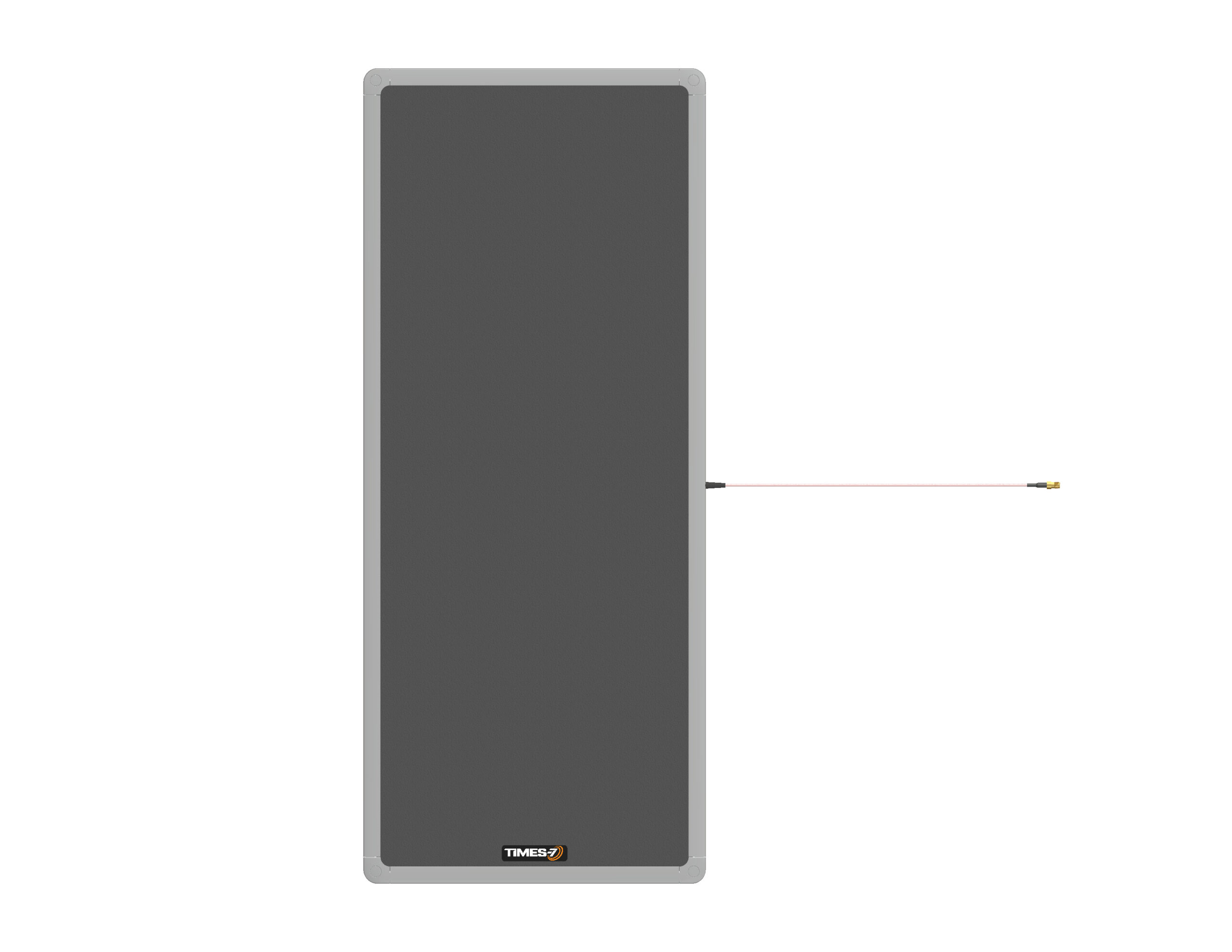

Times-7 – A6034 SlimLine™ Circularly Polarized UHF Antenna
The Times-7 A6034 is a high-performance, ultra-low-profile UHF RFID antenna designed to deliver exceptional read coverage in portal and industrial access applications. With a long 747 mm span and up to 9 meters of read range, the A6034 ensures accurate and comprehensive tag detection in high-throughput environments. Its 12 mm thickness and rugged IP65-rated ABS housing make it ideal for both space-constrained and harsh settings, including logistics hubs, smart warehouses, retail backrooms, and race timing systems. Whether mounted horizontally or vertically, the A6034 offers dependable, circularly polarized performance in even the most demanding scenarios.
Specification
-
Frequency Range: 865–868 MHz (ETSI) / 902–928 MHz (FCC)
-
Polarization: Circular (RHCP or LHCP options)
-
Far-Field Gain: 9 dBiC (typical)
-
3 dB Beamwidth: 25° vertical / 81° horizontal
-
VSWR: 1.4 typical
-
Front-to-Back Ratio: 25 dB
-
Axial Ratio: <2 dB at boresight
-
Nominal Impedance: 50 Ω
-
Maximum Input Power: 3 W
-
Antenna Detection: 10 kΩ resistance
-
Anti-Static Protection: DC grounded
Physical & Environmental:
-
Dimensions: 747 x 314 x 12 mm (29.4” x 12.4” x 0.5”)
-
Weight: 2.2 kg (4.8 lbs)
-
Material: Flame-retardant ABS
-
Connector: SMA female, side-mounted fly lead (300 mm)
-

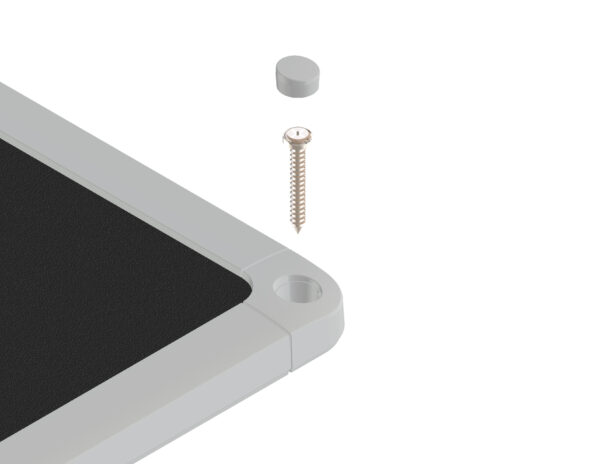

Mounting: Integrated screw holes—no accessories required
-
Environmental Rating: IP65
-
Operating Temperature: –20 °C to +55 °C
-
Storage Temperature: –30 °C to +65 °C
Benefits
With its elongated panel and wide beamwidth, the A6034 maximizes coverage across large portals or gates, reducing the need for multiple antennas while ensuring accurate, uninterrupted tracking.
At just 12 mm thick, the A6034 can be deployed in narrow or architecturally sensitive locations, including door frames, conveyors, or retail walls—blending performance with clean design.
IP65-sealed and constructed from flame-retardant ABS, the A6034 is built to withstand dust, moisture, and rough handling, making it suitable for both indoor and semi-outdoor use.
