Times-7 – A3042 Robust SlimLine™ High Gain Antenna

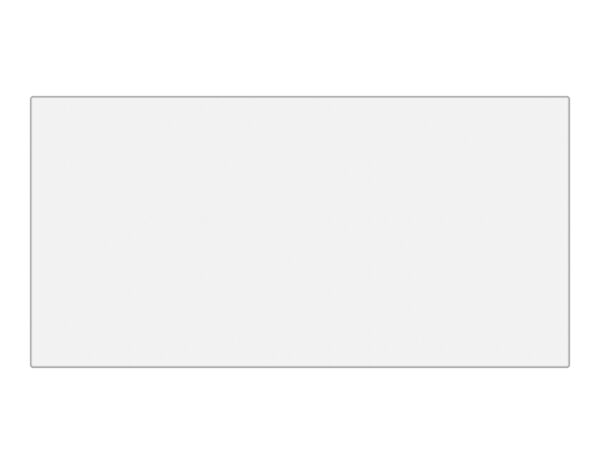

The A3042 from Times-7 is a rugged, high-gain circularly polarized RFID antenna designed for performance-critical applications in industrial, commercial, and outdoor environments. Engineered with an 8-patch array delivering 10.5 dBiC gain, the A3042 ensures consistent and directional tag detection, even in dense tag environments. Its IP54-rated housing, solar-resistant radome, and rear-mounted RP-TNC connector allow for durable, discreet installation in both vertical and horizontal configurations. This antenna excels in vehicle tolling, access control, laundry management, and high-density asset tracking—where tight RF zones, accuracy, and mounting flexibility are paramount. Available in both left- and right-hand circular polarization models for optimal deployment in multi-antenna environments.
Specification
- Frequency Range: 865–868 MHz (ETSI) / 902–928 MHz (FCC)
- Polarization: Circular (LHCP or RHCP options)
- Far-Field Gain: 10.5 dBiC typical
- 3dB Beamwidth: 25° (XZ plane), 60° (YZ plane)
- VSWR: 1.4 typical
- Front-to-Back Ratio: –25 dB
- Axial Ratio: 2 dB typical
- Nominal Impedance: 50 Ω
- Max Input Power: 3 W
- Antenna Detection: 10kΩ resistance
- Anti-Static Protection: Yes, DC grounded

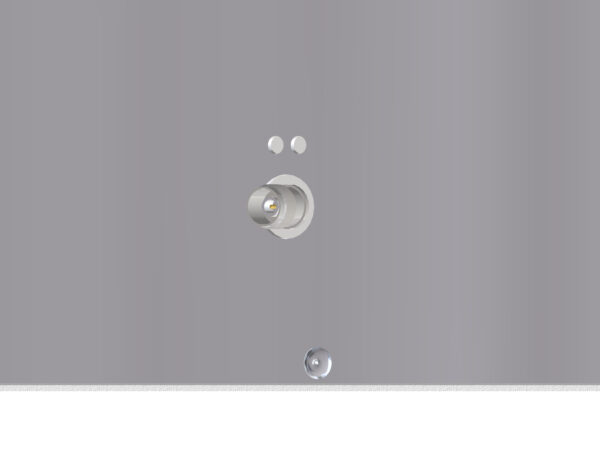

- Connector: RP-TNC (rear-mounted)
-
Benefits
With up to 9 meters of reliable tag detection and a thickness of just 12 mm, the A4030L delivers robust RFID performance without compromising on space or design.
Its narrow beam and excellent front-to-back ratio focus energy exactly where it’s needed while reducing stray reads and RF noise—enhancing performance in high-density tag environments.

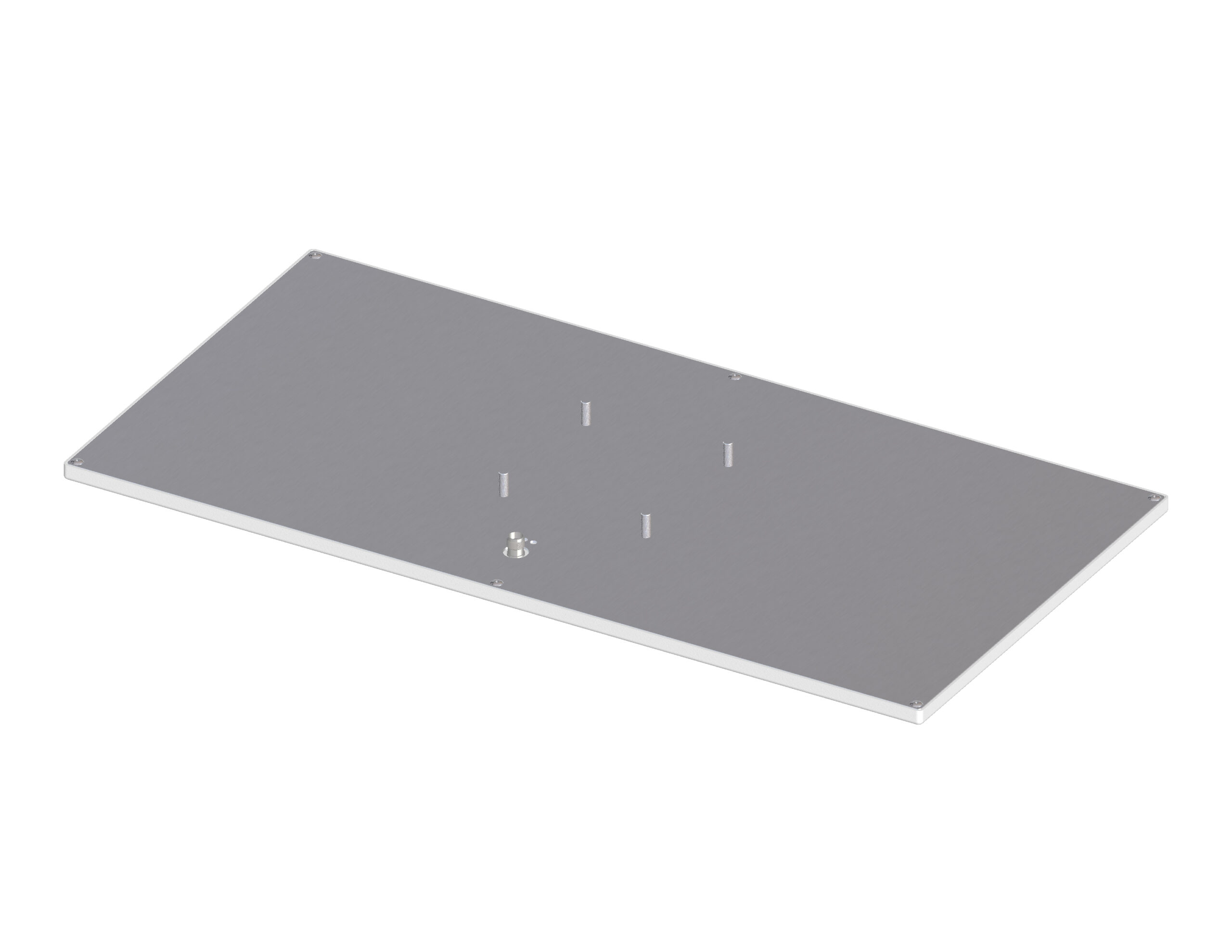

Designed with a formed ABS radome, IP54 rating, and integrated backplate, this antenna withstands solar exposure, ESD, and mechanical stress—making it a dependable choice for both indoor and outdoor use.
