Products
Showing all 18 results
-
FEIG – HF Mid Range Reader ID MR102
View DetailsThe HF Mid Range Reader ID MR102 is a compact multitag reader designed for various applications. It operates at a frequency of 13.56 MHz and can identify transponders according to ISO 15693. With a read range of up to 40 cm, it is suitable for middle-range applications. The reader features an anti-collision function, allowing it to read up to 30 transponders simultaneously. It offers numerous communication interfaces, including Ethernet (TCP/IP), USB, and RS232, making it easy to integrate into existing systems. The ID MR102 is available in both module and housing versions, with the housing version being suitable for industrial environments. It is ideal for use in retail, industry, logistics, and libraries.
-
FEIG – ID ANT1710 / 690 Crystal Gate Wave
View DetailsThe ID ANT1710/690 Crystal Gate Wave HF Gate Antenna is a high-performance RFID solution that offers excellent 3D identification rates and a comfortable passage width of up to 130 cm. With its transparent design and integrated radar people counter, it provides a cost-effective and flexible solution for various applications. The antenna is easy to install and comes with comprehensive service software for seamless integration into existing systems. It also offers optional functions such as extended people counting capabilities and customizable base covers. With flexible IT integration options and international approvals, this antenna is a modern and reliable choice for RFID applications.
-
FEIG – ID ANT1710/690 Excellence
View DetailsThe ID ANT1710/690 Crystal Gate Excellence is a high-performance RFID gate antenna that offers excellent 3D identification rates and a comfortable passage width of up to 180 cm. With its transparent design and integrated radar people counter, it provides a cost-effective and flexible solution for seamless integration into existing systems.
-
FEIG – ID CPR02.10
View DetailsThe ID CPR02.10-AD/-B RFID Card Reader is a versatile and reliable device designed for contactless data exchange with common ISO 14443-A & -B and ISO 15693 Transponders. It is suitable for various applications such as Access Control and Time Attendance. With its compact size and durable construction, it can be easily mounted on walls for both indoor and outdoor use.
-
FEIG – ID CPR03.20
View DetailsThe ID CPR03.20 RFID Card Reader is a versatile and reliable access control system designed for both indoor and outdoor use. With its multi-tag capability, it supports common ISO 14443-A & -B and ISO 15693 transponders for contactless data exchange. The reader can be easily configured on-site using a ConfigCard, and offers flexible data exchange options via serial (RS232-TTL) or Data / Clock (Wiegand) interface.
-
FEIG – ID CPR30+ Desktop Reader
View DetailsThe ID CPR30+ Desktop Reader is a proximity reader designed for contactless data exchange with ISO 15693 and ISO 14443-A/-B compliant transponders. It is compact, reliable, and compatible with NFC applications. With its NFC High Power Mode, it offers enhanced reading ranges and improved reliability, making it ideal for use in offices, workstations, or at the point of sale. The reader is form, fit, and function compatible with ID CPR30 and is qualified according to Zhaga Book 24, commonly used in the lighting industry. It is powered and connected to a computer or other equipment via the USB interface.
-
FEIG – ID CPR40.30-A
View DetailsThe ID CPR40.30-A is a versatile desktop reader designed for contactless data exchange with common transponders according to ISO14443-A and ISO14443-B, as well as NFC devices according to ISO 18092. It is ideal for various desktop applications such as eTicketing, eDocument, loyalty cards, and public transport. With its “SoftCrypto” and “SAMCrypto high level” functions, it provides a comfortable and fast interface for accessing encrypted data of mifare DESFire EV1, mifare PLUS, and mifare Ultralight C.
-
FEIG – ID CPR46.10
View DetailsThe ID CPR46.10 is a robust RFID Card Reader designed for flush mounting in machines, self-service kiosks, and terminals made of metal. It offers high protection against environmental influences and vandalism, making it ideal for outdoor and high-traffic areas. With its automatic power management and low standby power consumption, it is suitable for solar- and battery-powered machines. The reader supports encrypted data transfer and has a compact design for easy installation.
-
FEIG – ID CPR50.10-E
View DetailsThe ID CPR50.10-E is a wall mountable RFID card reader designed for IP-based systems. It supports transponders following ISO standards 14443-A & -B and ISO 15693, as well as NFC devices. With its fast Ethernet interface and Power over Ethernet (PoE) capability, it can be easily integrated into existing LAN networks. The reader modes “Polling Mode” and “Notification Mode” optimize data transfer between the card reader and the host system. It is suitable for both indoor and outdoor use, with an IP54 protection class.
-
FEIG – ID ISC.LR(M)1002-E
View DetailsThe HF Long Range Reader ID ISC.LR(M)1002-E is a powerful reader designed for a wide range of applications in retail, industry, and logistics. It offers an optimal cost-performance ratio and adjustable output power. With different interfaces available, including Ethernet, USB, and RS232, it provides flexibility for various connectivity needs. This reader is suitable for applications where the output power of a mid-range reader is insufficient, such as conveyor belts, sorting systems, and production lines. It is licensed according to ETSI, FCC, and IC, and is internationally certified.
-
FEIG – ID LR(M)2500
View DetailsThe ID LR(M)2500 is a powerful HF Long Range Reader suitable for a wide range of applications in retail, logistics, and industry. It offers numerous communication interfaces, including Ethernet, USB, RS232, RS485, and Data Clock. With its flexible configuration options and integrated diagnostic capabilities, this reader provides reliable and efficient tag detection and identification.
-
FEIG – ID LR(M)5400 HF Long Range Reader
View DetailsThe ID LR(M)5400 HF Long Range Reader is a high-performance RFID reader suitable for various applications. It offers stable reading and writing performance, best read range, and fast reading speed, making it ideal for libraries, laundries, casinos, logistics, and industry.
The 13.56 MHz high performance reader ID LR(M)5400 provides best sensitivity, stable reading and writing performance, best read range, fast reading speed at large transponder density and multiple antenna configurations.
The reader supports transponders according to ISO 15693, ISO 18000-3-A, ISO 18000-3M3 and NXP I-Code 1 RFID/NFC protocols and is best suited for applications such as libraries, laundries, casinos, logistics and industry. Combined with FEIG’ external multiplexer, power splitter and antenna tuner, setups such as security gates, conveyors and antenna systems of various sizes can be realized easily. Flexible interface options, configuration options and multiple reading modes allow trouble-free integration in professional TCP/IP networks. -
FEIG – ID MAX50.10
View DetailsThe ID MAX50.10 is a compact RFID card reader with an integrated access controller, designed for offline management of more than 5,000 access permissions. It combines the functions of a card reader, a door control, and access control in one device. With its fast Ethernet interface, it allows easy integration into IP-based network infrastructures. The AES-encrypted data ensures high system security, protecting against attacks. It supports various transponders and can examine either the serial number or user-selectable memory areas of the transponder.
-
FEIG – ID PAD74-U
View DetailsThe ID PAD74-U is a compact and powerful USB pad reader designed for contactless data exchange with HF transponders. It features a defined capture window and a read range of up to 19 cm. With support for ISO 15693 and ISO 14443 transponders, it is suitable for applications like access control, user ID card detection, and book/document tracing in libraries and offices. The reader comes with 3 LEDs for optical feedback and is USB powered, making it easy to connect to a laptop or desktop PC.
-
FEIG – ID PR101-USB
View DetailsThe ID PR101-USB HF Proximity Reader is a compact and versatile reader designed for various applications in retail, industry, logistics, and libraries. It offers an integrated antenna and supports ISO 15693 transponders with an operating frequency of 13.56 MHz. With its anti-collision function, it can read multiple transponders simultaneously, making it efficient and convenient to use. The reader has a maximum read range of 18 cm and can be easily integrated into existing systems.
-
FEIG – ID SPAD102
View DetailsThe Shielded HF Pad Antenna, ID ANTS370/270-A and ID SPAD102, is a contactless data exchange antenna designed for desktop applications in offices and libraries. It allows for traceability of files and documents, as well as detection of lendable items at check out or return points. With a read range of over 30 cm, these antennas offer outstanding performance and modern design.
-

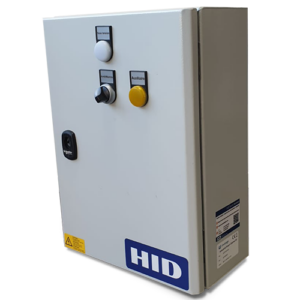

HID – Industrial HF/UHF Smart Case
View DetailsThe Industrial HF/UHF Smart Case by HID Global is a cutting-edge RFID reader unit tailored for textile services applications, particularly in laundry plants. This innovative device boasts a dual-frequency capability, operating at 13.56 MHz and 865 to 868 MHz, ensuring high detection performance in challenging laundry environments. The Smart Case is a compact, fully integrated solution that can be easily installed on existing conveyors, making it a convenient addition to any linen management system.
Designed to support both HF and UHF reader technologies, the Smart Case goes beyond basic RFID functionality. It features a smart micro-module that not only enhances its performance but also enables Cloud operations. This connectivity to the Cloud allows for remote upgrades and maintenance, simplifying the deployment and management of connected RFID infrastructure. The device meets stringent radio standards and electrical safety requirements, ensuring a smooth and integrated installation process that complies with European regulations in production environments.
With an industrial casing built to withstand the rigors of laundry environments, the Smart Case is resistant and durable. Its compatibility with mixed tag populations, including HF and UHF tags, makes it versatile for various applications. The Smart Case also offers adaptability and adjustability to different conveyor systems, enhancing its flexibility in deployment. Additionally, the device comes with a range of features such as GPIO inputs and outputs, power supply requirements of 110 V to 240 V, and a temperature operating range of 0degree C to 55degree C.
Overall, the Industrial HF/UHF Smart Case is a comprehensive solution for linen management, offering high detection performance, dual-frequency technology, Cloud connectivity, and a host of features that cater to the specific needs of textile services applications. -
HID – Medio HF Readers
View DetailsThe Medio HF Readers by HID Textile Services are high-performance RFID readers designed for various applications. They come in different sizes and formats, offering advanced technology for efficient track and trace operations. With their compact design and easy integration, these readers provide reliable and accurate RFID tag information extraction in noisy environments.
