IDTronic – IGNITE-SMART Reader

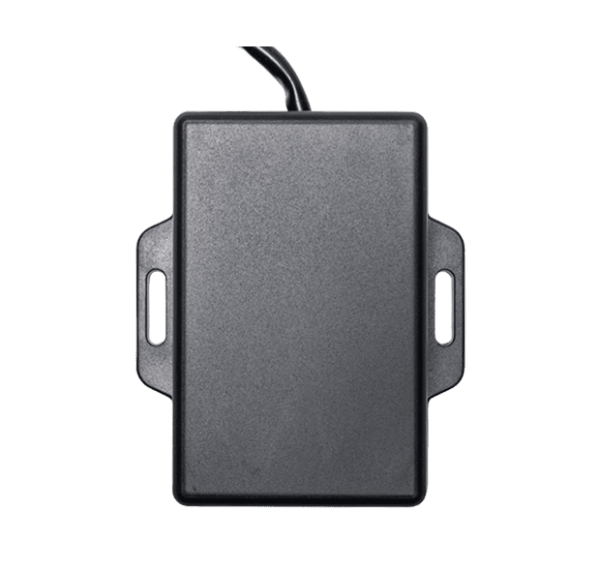

The IGNITE-SMART Reader is a battery-powered smart RFID reader designed for E-Mobility vehicles such as electric scooters, cars, and e-bikes. It serves as a lock for these vehicles, providing a secure and convenient way to start and stop the engine without the need for an ignition key. With its integrated HF and NFC reader, it supports DESFire and NFC tags and transponders, allowing for easy programming of RFID keys. The reader automatically detects a valid RFID key, wakes up the ECU, and sends the key number to the ECU. It communicates with a CANbus interface, making it compatible with a wide range of vehicles. The IGNITE-SMART Reader is built to withstand demanding outdoor usage with its IP64 protection class and can operate in temperature fluctuations from -10 degree C to +50 degree C. It is certified according to RoHS 2 and REACH, and comes with a software development kit for easy integration into existing systems.
Specification
- Power Supply: 7.6 – 13.8 Vdc (battery powered)
- Power Consumption: < 120 mA, standby current < 1 mA (low power mode)
- Operating Frequency: HF | NFC: 13.56 MHz
- Antenna: Integrated
- Reader IC: CL 663
- RF TX Speed: up to 848 kBd
- Interfaces: CANbus (SAE J1939 or CANopen) with custom-specific communication protocol
- Baudrate CANbus: 250 or 500 kbit/s
- Connectors: JST 04T-JWPF-VSLE-S, 0.33 mm²/ AWG22 wire gauge
- Dimensions: 81.4 x 68.6 x 24.1 mm
- Material: ABS (Acrylonitrile Butadiene Styrene)
- Weight: 90 g (incl. cable)
- Operating Temperature: -10 degree C to +50 degree C
- Storage Temperature: -20 degree C to +60 degree C
- Humidity: up to 95 %, non condensing
- MTBF: 200,000 h
- Protection Class: IP64 (potted electronics)
- Supported Standards | Tags: ISO 14443A/B, ISO 15693, NFC-IP1, NFC-IP2
- Applicable Standards: EMC, Radio Regulation, Safety, RoHS 2, REACH
- Certificates: FCC, CE
- Supported OS: Windows 7, 8, 8.1, 10
- Supported Languages: C++, Binary command protocol
- Demo Software: Windows
Benefits
The IGNITE-SMART Reader serves as a smart lock for E-Mobility vehicles, allowing users to start and stop the engine without the need for an ignition key, providing convenience and enhanced security.
With its integrated HF and NFC reader, the IGNITE-SMART Reader supports DESFire and NFC tags and transponders, making it compatible with a wide range of RFID keys and enabling easy programming during production.
Designed for demanding outdoor usage, the IGNITE-SMART Reader has an IP64 protection class and can withstand temperature fluctuations from -10 °C to +50 °C, ensuring its durability and reliability in various environments.
Related Products
The ID PR101-USB HF Proximity Reader is a compact and versatile reader designed for various applications in retail, industry, logistics, and libraries. It offers an integrated antenna and supports ISO 15693 transponders with an operating frequency of 13.56 MHz. With its anti-collision function, it can read multiple transponders simultaneously, making it efficient and convenient to use. The reader has a maximum read range of 18 cm and can be easily integrated into existing systems.
- Dimensions: 85 mm x 145 mm x 31 mm
- Weight: 200 g
- Housing: Plastic ABS
- Colour: Similar to RAL 9018 (Papyrus white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power: 0.5 W ± 2 dB
- Supply voltage: 5 V DC (via USB)
- Current consumption: Max. 0.5 A
- Power consumption: Max. 2.5 VA
- Antenna: Integrated
- Read range: Max. 18 cm
- Interface: USB 2.0
- Indicators, optical: 1 LED (multicoloured)
- Supported transponders: ISO 15693, (ISO 18000-3 MODE 1)*
- Operation modes: ISO Host Mode, Scan Mode
- Address setting for interface: Device-ID of the reader
- Temperature range:
- Operation: -25 degree C up to +60 degree C
- Storage: -25 degree C up to +70 degree C
- Relative air humidity: 5% up to 95% (non-condensing)
The ID CPR40.30-A is a versatile desktop reader designed for contactless data exchange with common transponders according to ISO14443-A and ISO14443-B, as well as NFC devices according to ISO 18092. It is ideal for various desktop applications such as eTicketing, eDocument, loyalty cards, and public transport. With its “SoftCrypto” and “SAMCrypto high level” functions, it provides a comfortable and fast interface for accessing encrypted data of mifare DESFire EV1, mifare PLUS, and mifare Ultralight C.
- Dimensions (w x h x d): 144 mm x 84 mm x 18 mm
- Weight: approx. 260 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- RFID Interface: ISO 14443-A/-B (106 – 848 kBit/s)
- Operating frequency: 13.56 MHz
- Transmitting power: 100 mW
- MTBF: 500,000 h
- Supply voltage: 5 V DC ± 10 % ripple
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: RS232 (4,800 up to 230,400 Baud)
- Indicators, optical: 2 LED (green / blue)
- Contact interface: ISO 7816
- Operation modes: Polling-Mode, Scan-Mode
- Supported transponders: mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare/NTAG Ev2 Crypto, NFC Devices in Card Emulation Mode (Tag Type 1 … 4)
- Software Development Kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver, PC/SC driver: Windows Server 2012 and 2016, Windows 7, 8 and 10; 32 / 64 Bit
- Temperature range:
- Operation:-20 degree C up to +60 degree C
2. Storage:-40degree C up to +85 degree C - Relative air humidity: max. 95% (non-condensing)
- Standard conformity:
- Radio license: Europe – EN 300 330
2. EMC: EN 301 489
3. Safety & Health: EN 60950, EN 50364
4. Environment: RoHS-2002/95/EC, WEEE-2002/96/EC - Order descriptions: ID CPR40.30-A – Desktop Reader RS232
- Scope of delivery: ID CPR40.30-A, 2.5 m cable (permanently mounted) for power supply (5.5 mm coaxial connector) and interface (9-pin D-Sub connector), Installation manual
The UHF Mid-Range Antenna ID ANT.U150/150 by FEIG ELECTRONIC GmbH is a robust, compact, and aesthetically pleasing antenna designed for a variety of demanding environments. With a circular polarization that ensures optimal performance and reliable read ranges up to 4 meters, this antenna is ideal for logistics, industrial applications, railway systems, waste management, and retail inventory tracking. Its IP68 protection class makes it suitable for permanent outdoor use, even in harsh industrial settings. The ID ANT.U150/150 features a VESA100 standard mounting for easy installation and is compatible with multiple FEIG UHF readers, making it a versatile solution for efficient asset tracking and inventory management.
- Dimensions: 151 mm x 150 mm x 14.5 mm
- Weight: 230 g
- Housing: ABS, UV resistant, and fire-retardant
- Protection Class: IP68
- Gain: Approximately 5 dBic
- 3 dB Beam Width: 105 x 105
- Polarization: Circular (RHCP)
- Antenna Connector: SMA (female)
- Operating Frequencies:
EU Variant: 865 Mz – 868 MHz
FCC Variant: 902 MHz – 928 MHz
The ID ANT800/600-DA HF Loop Antenna is a versatile and high-performance antenna designed for use with HF readers. With a read range of up to 100 cm and a transmitting power of 8 W, this antenna is capable of delivering reliable and efficient RFID communication. Its easy setup, integrated dynamic antenna tuner, and IP65 protection class make it suitable for various applications.
- Dimensions: 852 mm x 620 mm x 40 mm
- Weight: approximately 2.5 kg
- Housing: Plastic ABS
- Color: Black
- Protection class: IP65
- Operating temperature range: -25 degree C up to +55 degree C
- Storage temperature range: -25 degree C up to +60 degree C
- Relative air humidity: 5% up to 95% (not condensing)
- Operating frequency: 13.56 MHz
- Max. transmitting power: 8 W
- Permitted transmitting power:
- EU (EN 300 330): 4 W
- USA (FCC Part 15): 2 W
- Canada (RSS-210): 2 W
- Read range: up to 100 cm*
- Antenna connection: 1 x SMA plug (50 ohm)
- Antenna connection cable: RG58, 50 ohm, approximately 3.6 m
The ID ANT240/180-A is a flat and compact pad antenna designed for contactless data exchange with RF RFID transponders. With a read range of up to 42 cm, it is suitable for use in enclosed spaces such as offices, libraries, and file tracking applications. The antenna features a sleek design and can be connected directly to a reader with an included coaxial cable.
- Dimensions: 240 mm x 180 mm x 13 mm (9.45 inch x 7.09 inch x 0.51 inch)
- Weight: approx. 0.36 kg (0.8 lbs)
- Housing: Insensitive surface with upper part made of plastic ABS and lower part made of plastic plate
- Colour: Black pad and similar RAL 9003 (white) upper part
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Max. transmitting power:5 W
- Antenna connection: RG174 coaxial cable with SMA connector (50 ohm); approx. 2.2m long
- Indicator, optical: 1 LED (blue; switchable via DC voltage at the antenna output of the reader)
- Temperature range: Operation:-25degree C up to +55degree C (-13F up to 131F), Storage:-25degree C up to +70degree C (-13F up to 158F)
- Relative air humidity: 5% up to 95% (non-condensing)
- Standard conformity: EMC: EN 301 489, Safety & Health: EN 62368-1, EN 50364
The Dynamic Antenna Tuner ID DAT is a versatile device designed for automatic tuning and retuning of RFID Long Range Antennas operating at 13.56 MHz. With its easy “Plug & Play” functionality, it eliminates the need for additional tuning devices. The tuner can be driven via HF connection and allows for parameters or calibration status to be sent to the host. It also features an electronic switch to disconnect the antenna circuit when necessary.
- Dimensions: 118 mm x 90 mm x 19 mm
- Weight: approximately 100 g
- Operating frequency: 13.56 MHz
- Supply voltage: 7 – 12 V DC
- Current consumption: maximum 150 mA (DC)
- Transmitting power: maximum 10 W
- Antenna switch: electronic switch (mind maximum antenna power!)
- Antenna connection: cable terminals (d = 2 – 9 mm)
- Reader connection: SMA socket (50 ohm)
- Triggering reader: via RF connection
- Signal indicator: 1 x “Run”-LED (green), 2 x “Protocol”-LED (red)
- Outputs: 3 x open collector: 5 V DC / maximum 15 mA
- Carrier frequency: 13.56 MHz
- Impedance: 50 ohm
- Tuning range inductivity: 0.7 – 2.5 microH
- Quality: 10 – 50
- Temperature range:
- Operation: -25 degree C up to +75 degree C
- Storage: -40 degree C up to +85 degree C
