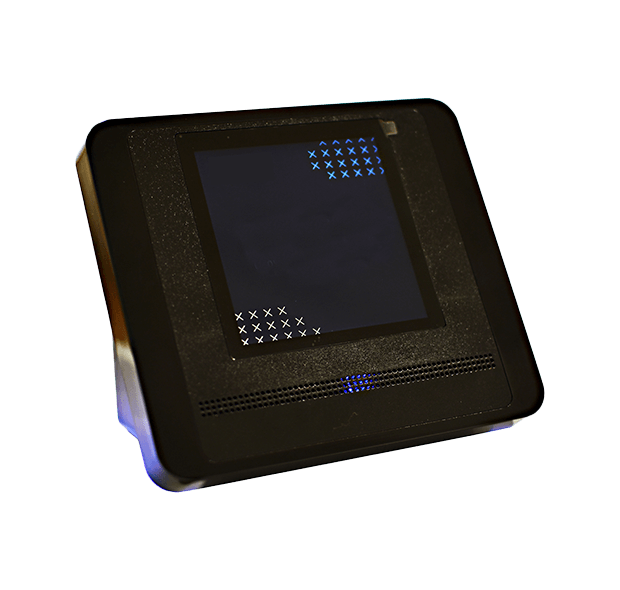

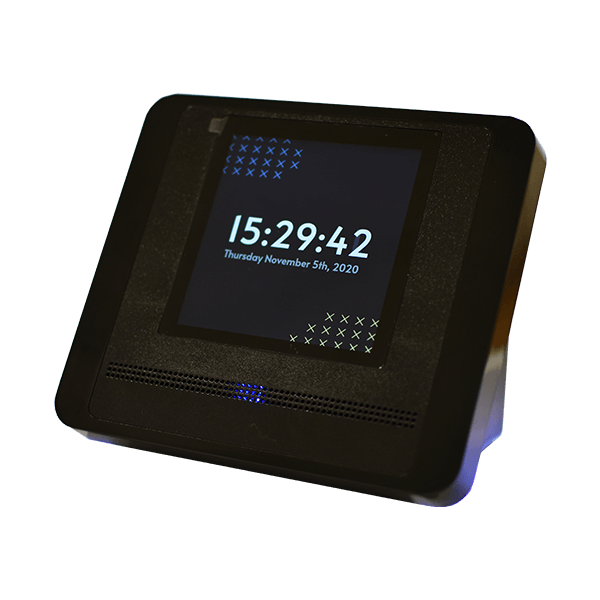

IDTronic – ID INFO 3000 Smart Access Control Terminal
The ID INFO 3000 is a modern touch terminal designed for access control and time recording in gyms, pools, spas, and corporate facilities. Featuring a customizable 4” color LCD, integrated MIFARE RFID reader, and optional barcode/QR scanning, the terminal enables secure, contactless check-in and check-out experiences. Built for both wall and desk mounting, the ID INFO 3000 supports Ethernet (and optionally WiFi), offers an internal relay for gate or door control, and provides visual and acoustic feedback via LEDs and buzzer. A perfect solution for personalized and automated access systems.
Specification
Electrical & Performance:
-
Rated Voltage: 9–23 VDC
-
Power Consumption: Max. 340 mA
-
CPU: ARM Cortex-A9 (Freescale i.MX6 ULL, up to 528 MHz)
-
RAM: 256 MB DDR3L
-
Storage: 8 GB eMMC (expandable via internal MicroSD)
Display & Interaction:
-
Screen: 4” TFT LCD color display
-
Resolution: 720 x 720 px
-
Touch Interface: Capacitive (web-configurable UI)
-
LEDs: 4 side LEDs + antenna-integrated indicators
-
Acoustic Feedback: Integrated buzzer
Connectivity & I/O:
-
Interfaces:
-
Ethernet 10/100
-
TTL serial + power supply for external device
-
2× USB 2.0
-
223 TTL Debug port
-
-
Input: 1 digital opto-isolated
-
Output: 1 relay output (NC/NO/C)
-
Clock: Internal RTC
-
WiFi: Optional
RFID & Reader:
-
Frequency: 13.56 MHz
-
Technology: HF RFID (MIFARE-compatible, NFC supported)
-
Optional Module: Integrated barcode/QR scanner
Mechanical & Environmental:
-
Dimensions:
-
Without base: 149 × 129 × 39 mm
-
With base: 149 × 120 × 94 mm
-
-
Material: PVC housing
-
Weight: 225 g (300 g with base)
-
Mounting Options: Wall or table mount
-
Scope of Delivery: Terminal, RFID reader, mounting kit
Benefits
The 4” touch LCD supports customized background images, messages, and UID-based greetings—ideal for branding and personalized experiences.
Install on walls or desks with flexible interfaces like Ethernet, TTL, and optional WiFi—plus internal relay for door or gate control.
Supports MIFARE RFID, NFC, and optional barcode/QR code scanning for seamless user authentication across wellness, leisure, and workplace settings.
Related Products
The ID ANT.U280/210 is a versatile UHF flat-panel antenna, engineered for peak performance in compact spaces. With a height of just 8mm, this ultra-flat antenna delivers a robust reading range of up to 4 meters, making it ideal for Smart Shelf applications and environments with limited installation space. Its circular polarization ensures optimal performance, while integrated mounting holes allow for easy installation on any flat surface. The ID ANT.U280/210 is constructed from durable, fire-retardant ABS material and features an IP54 protection rating, ensuring reliable operation in various industrial, production, and retail environments. Compatible with several FEIG UHF readers, this antenna is designed to meet the demanding requirements of modern RFID applications.
- Dimensions: 275 mm x 214 mm x 8 mm
- Weight: 500 g
- Housing: ABS, fire-retardant
- Color: Black
- Protection Class: IP54
- Gain: Approx. 5 dBic
- 3 dB Beam Width: 60 x 80
- Polarization: Circular (RHCP)
- Antenna Connector: SMA (female)
- Operating Frequencies:
- EU Variant: 865 MHz – 868 MHz
- FCC Variant: 902 MHz – 928 MHz
- Temperature Range:
- Operation:-20 degree C to +55 degree C
- Storage:-30 degree C to +65 degree C
- Compatibility:
- ID LRU500i UHF Long Range Reader (with cable type B)
- ID MAX.U500i
- ID LRU1002 UHF Long Range Reader (with cable type A)
- ID LRU3000/ID LRU3500
- ID MAX.U1002
- ID MRU102 UHF Mid Range Reader (with cable type A)
- ID MRMU102 UHF Mid Range Reader Module (with cable type A)
- Accessories:
- ID ANT.C2-A UHF antenna cable SMA / SMA 2 m
- ID ANT.C2-B UHF antenna cable SMA / TNC 2 m
- ID ANT.C6-A UHF antenna cable SMA / SMA 6 m
- ID ANT.C6-B UHF antenna cable SMA / TNC 6 m
The ID ANT.U75/50 is a UHF antenna designed for short read ranges. It operates at frequencies of 865-868 MHz and 902-928 MHz, making it suitable for use with the UHF Reader module ID MU02-02 and the Mid Range Readers ID MR(M)U102. With its compact design and low installation depth, it is an ideal choice for applications requiring a compact UHF antenna.
- Dimensions: 75 mm x 50 mm x 3 mm
- Connection: U.FL connector
- Operating frequencies: 865-868 MHz (EU), 902-928 MHz (FCC)
- Impedance: 50 ohm
- Maximum input power: 300 mW
- Read range:
- Far Field Tags: up to 20 cm
- Near Field Tags: up to 4 cm
- Gain: -20 dBi (linear)
- SWR:
- EU: <5:1
- FCC: < 2.0:1
The ID ANT340 / 240 HF Pad Antenna is an elegantly designed, high-performance antenna for contactless data exchange with HF transponders. Ideal for office and library applications, it provides up to a 30 cm read range for seamless file and document tracking. The antenna is built with a sleek, flat profile, making it a versatile choice for desktop use. It comes equipped with a 230 cm coaxial cable and SMA plug, ensuring easy integration with compatible readers. Available in both plastic housing and module form, this antenna offers flexibility for various applications in secure, contactless communication systems.
- Dimensions: 337 mm x 237 mm x 8 mm
- Weight: 530 g
- Material: Plastic ABS housing
- Color: Grey-white
- Protection Class: IP40
- Operating Frequency: 13.56 MHz
- Maximum Transmitting Power:2 W
- Antenna Connection: 1 x SMA plug (50 ohm)
- Cable Length: 230 cm RG58 coaxial cable
- Operating Temperature: 0degree C to +55degree C
- Storage Temperature: -25degree C to +85degree C
- Humidity Range: 5% to 95% (non-condensing)
- Compliance: EMC EN 301 489, Safety EN 62368-1, EN 50364

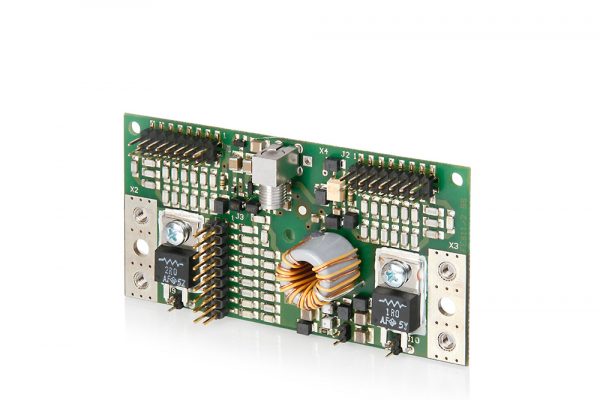

The ID MAT Manual Antenna Tuner is a versatile and reliable device designed for manual tuning and retuning of HF Long Range Antennas operating at a frequency of 13.56 MHz. It allows for easy construction of customized single antennas using different sizes and shapes of antenna conductors such as aluminium bands or copper pipes. With individually switchable capacitors, the antenna can be tuned to its environment, ensuring optimal performance. The ID MAT.S-A variant also features an electronic switch to disconnect the antenna circuit, preventing coupling effects in complex antenna arrangements.
