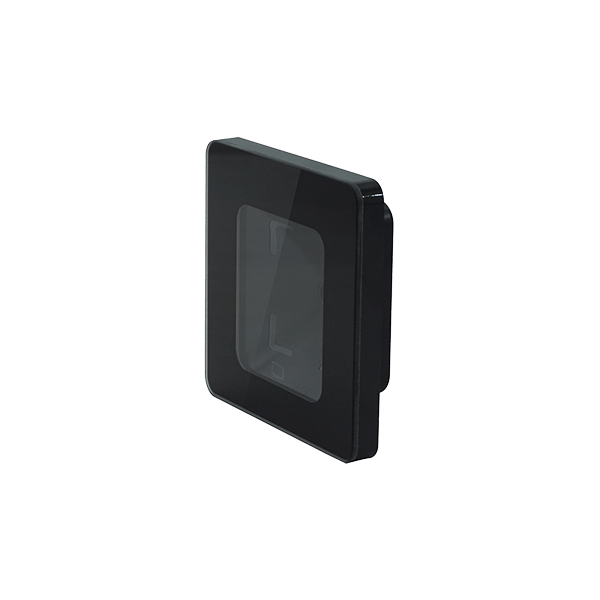

IDTronic – ID IDENT 2000 Access Control Reader
The ID IDENT 2000 is a compact, dual-technology access reader that combines high-speed RFID and 1D/2D barcode scanning in a single unit. Designed for turnstiles, access gates, and secure entry systems, it delivers fast performance, wide compatibility, and flexible mounting—even in space-constrained environments. It reads common transponders like cards, key fobs, and wristbands, and decodes barcodes from both paper and smartphone displays. Fully configurable via a dedicated software tool, the IDENT 2000 is ideal for use in gyms, spas, museums, offices, and cultural institutions.
Specification
Electrical & Reading Performance:
-
Power Supply: 5–24 VDC
-
Power Consumption: 280 mA
-
Reading Speed: 100 ms
-
Reading Distance: 0 – 62.4 mm (QR Code 15 mil)
-
Scan Mode: Automatic
-
Light Source: White LED
-
Image Sensor: 640 × 480 CMOS
Barcode & QR Code Compatibility:
-
2D Codes: QR Code, DataMatrix, PDF417
-
1D Barcodes: EAN-8/-13, UPC-A/-E, ISSN, ISBN, Codebar, Code 39/128, Interleaved 2 of 5, Industrial & Standard 2 of 5
RFID Support (HF | NFC):
-
Frequency: 13.56 MHz
-
Supported Tags: MIFARE Classic 1k/4k, MIFARE Ultralight, Fudan
Connectivity & Integration:
-
Interfaces: USB-HID, serial communication
-
Software Development: C, C++, C#, Java, Delphi
-
SDK OS Support: Windows XP/7/8/10/11, Linux, MacOS
-
Configuration: Via “Config-Tool” software
Mechanical & Environmental:
-
Dimensions: 88.3 × 88.3 × 28.35 mm
-
Material: PC + ABS
-
Operating Temp: –20 °C to +70 °C
-
Humidity: 5% to 95% (non-condensing)
-
Mounting: Flush or surface mount
-
Turnstile Compatibility: ID GATE 6200 / 7700 / 9200
Benefits
Integrates HF RFID and 1D/2D barcode scanning in one device—perfect for facilities using multiple credential types like cards, wristbands, and QR codes.
With a slim 28 mm depth, the IDENT 2000 is easy to mount in compact entry points, kiosks, or turnstiles without compromising performance.
Includes a robust SDK and configuration tool for quick setup, customization, and integration into various software platforms and access control systems.
