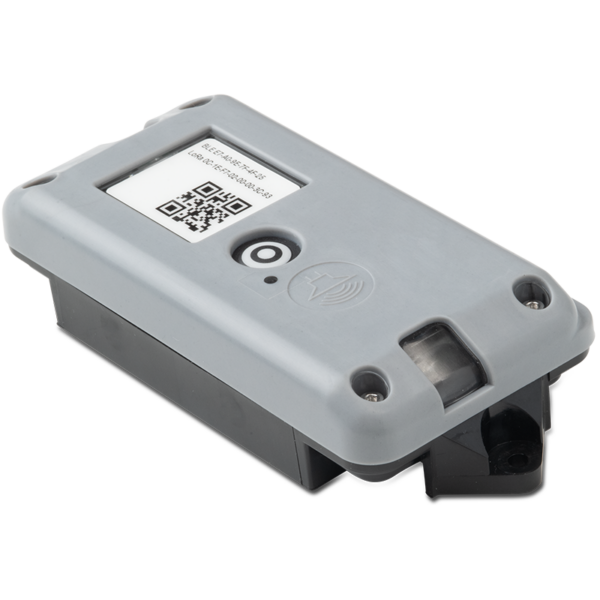

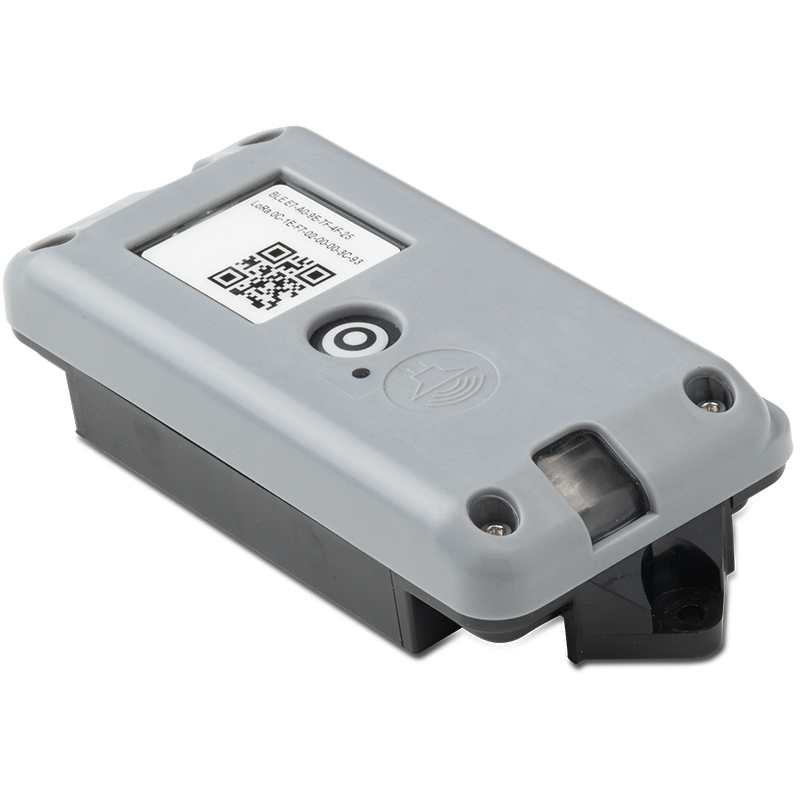

HID – Sense Asset+
The Sense Asset+ is a highly ruggedized, industrial IoT asset tracking device that offers effortless indoor and outdoor tracking of assets. With a multiyear replaceable battery, it provides superior ROI and performance. This device includes LoRaWAN connectivity protocol, Bluetooth Low Energy, and GPS capability. It is highly efficient and battery-powered, making it ideal for applications requiring medium to long-range tracking such as mining, laydown yard management, and asset management.
Specification
Benefits
The Sense IoT Asset+ utilizes multi-constellation GNSS technology to provide precise outdoor positioning, ensuring accurate tracking of assets in various environments.
With onboard Bluetooth Low Energy, the device enables indoor positioning using different techniques. It also allows for the activation of alerts, providing a versatile solution for asset tracking.
The device’s LoRaWAN communication protocol ensures power-efficient and long-range coverage, enabling bidirectional communication between the device and the backend. This allows for efficient asset tracking and management.
Related Products
The Beontag ESD On Metal Label is a high-performance UHF RFID label optimized for ESD plastics. It is designed to be attached to various surfaces, including curved surfaces, and offers excellent performance and durability. With an operational frequency range of ETSI 865 – 869 MHz and FCC 902 – 928 MHz, this label is compatible with UHF RFID / EPCglobal Gen2v2 devices. The label features Impinj Monza 4E IC type and has a memory configuration of EPC 496 bit, User 128 bit, and TID 96 bit. It is suitable for use on all surfaces, but it is specifically optimized for ESD plastics. The Beontag ESD On Metal Label offers a read range of up to 9m / 30ft on metal surfaces, 7m / 23ft on ESD plastics, 4m / 13ft on plastic surfaces, and 5m / 16ft on liquid containers. With its white PET surface and high tack adhesive, this label provides excellent printability and adhesion to all surfaces. It weighs only5g and comes in a delivery format of 300 good labels on a reel.
The Beontag ESD On Metal Label is resistant to a wide range of environmental conditions, including operating temperatures from -35degree C to +85degree C, peak temperature of +110degree C for 10 minutes, and water resistance up to 1m deep for 5 hours. It also exhibits excellent resistance to chemicals such as sulfuric acid, motor oil, saltwater, and NaOH. This label has a storage life of 1 year in +20degree C / 50% RH conditions. It is compatible with various printers, including Zebra, Sato, and Printronix models. The Beontag ESD On Metal Label offers personalization options such as pre-encoding, customized printing, and over-lamination. It is available in two product variants: Beontag ESD On Metal Label 80x35mm M4E ETSI and Beontag ESD On Metal Label 80x35mm M4E FCC.
The Beontag eKanban SLC is a single label designed for Small Load Carriers (SLC) that is compliant with VDA recommendations 4994 and 550. This UHF RFID label operates on the global frequency range of 860-928MHz and utilizes the Impinj Monza 4E IC. With a memory configuration of EPC 496 bit, User 128 bit, and TID 96 bit, this label offers a read range of up to 6 meters on plastic surfaces.
The label is made of thermal transfer printable paper with a yellow face color, and it is delivered on a reel with 600 pcs/reel. It is designed for short-term use and can withstand operating temperatures ranging from -20degree C to +70degree C. The Beontag eKanban SLC offers customer-specific encoding options and can be personalized with variable data printing.
- Device type: UHF RFID / EPCglobal Gen2v2
- Operational frequency: Global 860-928MHz
- IC type: Impinj Monza 4E
- Memory configuration: EPC 496 bit, User 128 bit, TID 96 bit
- Read range: Up to 6 meters on plastic surfaces
- Label materials: Thermal transfer printable paper
- Label dimensions: 208 mm x 80 mm x 0.2 mm / 8.19inchx 3.15inchx 0.01inch
- Delivery format: On reel, 600 pcs/reel
- Reel core inner diameter: 76.2 mm / 3inch
- Operating temperature: -20degree C to +70degree C / -4F to 158F
- Peak operating temperature: +85degree C / 185F for 6 hours
- Storage condition: 1 year in +20degree C / 50% RH (shelf life for adhesive)
- Expected lifetime: Meant for short-term use, can last for years in normal operating conditions
- Personalization options: Pre-encoding, customer-specific visual printing
The Beontag Crosswave Classic is a dual-dipole label designed for logistics applications, offering excellent reading performance and a consistent radiation pattern. This UHF RFID label operates at a global frequency range of 860-960MHz and utilizes the Impinj Monza 4E IC for efficient and reliable performance. With a memory configuration of EPC 496 bit, TID 96 bit, and User 128 bit, this label provides ample storage capacity for tracking and identification purposes. The Beontag Crosswave Classic offers a read range of up to 10 meters on plastic and cardboard surfaces, making it suitable for a variety of non-metallic materials.
With its 360° readability, this label ensures constant reading performance in all orientations, even when using a linear reader antenna. The tag materials consist of a matt coated paper face material with a general purpose permanent adhesive for secure attachment. Available in different dimensions and delivery formats, the Beontag Crosswave Classic is a reliable and versatile solution for logistics and tracking applications.
The Beontag Steelwave Flex is a global and compact UHF RFID label specifically designed for use on metallic surfaces. It offers flexible attachment on curved assets, making it versatile and adaptable for various applications. This label is optimized for use on metal surfaces, providing reliable and accurate tracking and identification. With its high-quality printing surface and excellent adhesion to all surfaces, including low surface energy plastics and painted metal, the Beontag Steelwave Flex ensures durability and longevity. It is compatible with Custom Zebra ZT410 RFID Silverline and ZT411 On-Metal printers, making it easy to integrate into existing systems.
The Beontag Cruiser Windshield is a non-transferable tamper-evident label designed specifically for car windshields. This UHF RFID / EPCglobal Gen2v2 device operates at a global frequency range of 860-960MHz. It is equipped with either the Impinj Monza 4E or Alien Higgs 3 IC, depending on the customer’s preference. The memory configuration varies depending on the IC type, with the Monza 4E offering EPC 496 bit, User 128 bit, and TID 96 bit, while the Higgs3 offers EPC 96-496 bit, User 64-512 bit, and TID 96 bit. The read range of this label is up to 8 meters (26 feet) on windshields, making it suitable for various applications. It is compatible with glass surfaces and performs optimally in non-reflective environments. The tag materials used include PP with strong adhesion on the back side towards the windshield, and inkjet and thermal transfer printable PP on the front side towards the driver. The label weighs only 1g and comes in a delivery format of 1500 pieces on a reel. With a tag dimension of 92 x 26 x 0.2 mm, it is compact and unobtrusive.
The Beontag Cruiser Windshield is designed to withstand a wide range of temperatures, from -35degree C to +70degree C (-31F to +158F), ensuring its durability in various climates. It has an expected lifetime of several years under normal operating conditions. With options for pre-encoding, customized dual-sided full-color artwork, and customer-specific visual printing, this label offers flexibility and personalization. Installation instructions are provided to ensure optimal performance and longevity of the label. Overall, the Beontag Cruiser Windshield is a reliable and secure solution for car windshield labeling, providing tamper-evident protection and efficient identification.
- Device type: UHF RFID / EPCglobal Gen2v2
- Operational frequency: Global 860-960MHz
- IC type: Impinj Monza 4E or Alien Higgs 3 (upon special request)
- Memory configuration:
- Monza 4E: EPC 496 bit, User 128 bit, TID 96 bit
- Higgs3: EPC 96-496 bit, User 64-512 bit, TID 96 bit
- Read range (2W ERP): Up to 8 m / 26 ft on windshields
- Applicable surface materials: Glass
- Tag materials:
- Back side (towards windshield): PP with strong adhesion on glass
- Front side (towards driver): Inkjet and thermal transfer printable PP
- Weight: 1g
- Delivery format: 1500 pcs on reel
- Pitch on reel: 33,866 mm / 1,333inch
- Reel core inner diameter: 76 mm / 3inch
- Tag dimensions: 92 x 26 x 0.2 mm / 3.62 x 02 x 0.01 in
- Operating temperature: -35degree C to +70degree C / -31F to +158F
- Ambient temperature: -35degree C to +70degree C / -31F to +158F
- Storage condition: 1 year in +20degree C / 50% RH (shelf life for adhesive)
- Expected lifetime: Years in normal operating conditions
- Personalization options: Pre-encoding, customized dual-sided full-color artwork, customer-specific visual printing
The Cruiser Windshield Crypto is an advanced RFID windshield tag designed for secure and efficient vehicle identification. Employing cutting-edge cryptographic technology, it ensures enhanced security against cloning and unauthorized access. With a sleek design and easy installation, it’s ideal for various applications including toll collection, parking management, and access control.
The Cruiser Windshield Crypto is a non-transferable tamper-proof label designed specifically for car windshields. It utilizes UHF RFID technology with an operational frequency of 860-960MHz. The label features the NXP UCODE DNA IC, which allows for a memory configuration of up to 224 bits for EPC, 3072 bits for user data, and 96 bits for TID. With a read range of up to 10 meters (ETSI) or 8 meters (FCC), the label is suitable for use on glass surfaces.
- Dimensions: 85.6 x 54 x 0 mm
- Operating Frequency: 860-960 MHz
- Chip Type: UCODE DNA
- Memory: 3072 bits user memory
- Material: PET
- Temperature Range: -40degree C to +85degree C
- Read Range: Up to 10 meters (depending on reader and environment)
