FEIG – ID RWA40.30-USB
The ID RWA40.30-USB is a versatile desktop reader designed for contactless data exchange with common 125 kHz transponders. It is suitable for various office, administration, and industrial applications. With its USB interface, it allows for easy power supply and data exchange with a computer or other equipment. The reader has its own local intelligence, enabling both online and offline operation.
Specification
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 125 kHz
- MTBF: 500,000 h
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Optical indicators: 2 LED (Green: Power and online/offline Blue: Transponder communication)
- Operation mode: Polling-Mode
- Supported transponders: 125 kHz Read Only transponders, 125 kHz Read / Write transponders
- USB CDC device driver: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Vista 32 Bit
- EEPROM: 512 Byte (1 x 106 write cycles)
- FLASH: 128 Byte (firmware update in application possible)
- Temperature range: Operation: -20 degree C up to +60 degree C, Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
Benefits
The ID RWA40.30-USB is a multi-tag reader compatible with all common 125 kHz transponders, making it suitable for various applications such as ticketing, ePayment, and more.
With its USB interface, the reader can be easily connected to a computer or other equipment for power supply and data exchange.
The reader has its own local intelligence, allowing for offline operation and configuration of the most important functions. This ensures continuous functionality even when not connected to a central host.
Related Products
The ID SPAD.U is a shielded UHF desktop reader with integrated antennas, designed for contactless data exchange with UHF transponders. With its flat and modern design, it offers maximum reliability and excellent reading performance. It is suitable for various markets, including laundries, libraries, and retail, and can be used for applications such as laundry logistics, library item tracking, and file/document tracking.
- Dimensions: 376 mm x 276 mm x 26.8 mm
- Weight: approximately 2.0 kg
- Housing: Upper part – Plastic ABS, Cover plate – Acrylic glass (PMMA XT), Lower part – Galvanized metal sheet
- Protection class: IP30
- Power supply: 12 to 24 V DC ±15%
- Power consumption: max. 7 VA
- Operating frequency: 865 MHz to 868 MHz
- Transmitting power: 50 mW to 500 mW, configurable in up to 8 steps
- Interface: USB
- Reader modes: ISO Host Mode, Buffered Read Mode, Scan Mode
- Supported transponders: EPC Class1 Gen2, ISO 18000-6-C (optional)
- Indicators: LED green, red, orange (mixed color), Buzzer
- Temperature range: Operation -25 degree C to +55 degree C, Storage -25 degree C to +70 degree C
- Relative humidity: 5% to 95% (non-condensing)
- Radio approval: Europe – EN 302 208, EMC – EN 301 489
- Safety: Low Voltage – EN 62368-1, Human Exposure – EN 50364
The ID RWA40.30-USB is a versatile desktop reader designed for contactless data exchange with common 125 kHz transponders. It is suitable for various office, administration, and industrial applications. With its USB interface, it allows for easy power supply and data exchange with a computer or other equipment. The reader has its own local intelligence, enabling both online and offline operation.
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 125 kHz
- MTBF: 500,000 h
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Optical indicators: 2 LED (Green: Power and online/offline Blue: Transponder communication)
- Operation mode: Polling-Mode
- Supported transponders: 125 kHz Read Only transponders, 125 kHz Read / Write transponders
- USB CDC device driver: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Vista 32 Bit
- EEPROM: 512 Byte (1 x 106 write cycles)
- FLASH: 128 Byte (firmware update in application possible)
- Temperature range: Operation: -20 degree C up to +60 degree C, Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
The ID ANT.U75/50 is a UHF antenna designed for short read ranges. It operates at frequencies of 865-868 MHz and 902-928 MHz, making it suitable for use with the UHF Reader module ID MU02-02 and the Mid Range Readers ID MR(M)U102. With its compact design and low installation depth, it is an ideal choice for applications requiring a compact UHF antenna.
- Dimensions: 75 mm x 50 mm x 3 mm
- Connection: U.FL connector
- Operating frequencies: 865-868 MHz (EU), 902-928 MHz (FCC)
- Impedance: 50 ohm
- Maximum input power: 300 mW
- Read range:
- Far Field Tags: up to 20 cm
- Near Field Tags: up to 4 cm
- Gain: -20 dBi (linear)
- SWR:
- EU: <5:1
- FCC: < 2.0:1
The ID ANT240/180 Pad Antenna is a highly efficient and compact solution for contactless data exchange with RFID transponders. Its flat and sleek design allows it to seamlessly fit into desktop environments, making it ideal for file tracking, library applications, and office use. The antenna provides an impressive read range of up to 42 cm, ensuring reliable performance in close-range RFID applications. Equipped with an optical feedback feature via a blue LED, the antenna offers real-time operational status updates. It connects easily to RFID readers using the included coaxial cable, providing a hassle-free installation process.
- Dimensions: 240 mm x 180 mm x 13 mm (9.45 in x 7.09 in x 0.51 in)
- Weight: 0.36 kg (0.8 lbs)
- Housing: Upper part Plastic ABS, lower part Plastic plate
- Color: Black (Pad), White (Upper part, RAL 9003)
- Protection Class: IP30
- Operating Frequency: 13.56 MHz
- Max. Transmitting Power:5 W
- Antenna Connection: RG174 coaxial cable with SMA connector (50 ohm), 2.2 m long
- Indicator: 1 Blue LED for operational status (switchable via DC voltage)
- Operating Temperature: -25degree C to +55degree C (-13F to 131F)
- Storage Temperature: -25degree C to +70degree C (-13F to 158F)
- Relative Humidity: 5% to 95% (non-condensing)
- Standard Compliance: EMC EN 301 489, Safety & Health EN 62368-1, EN 50364

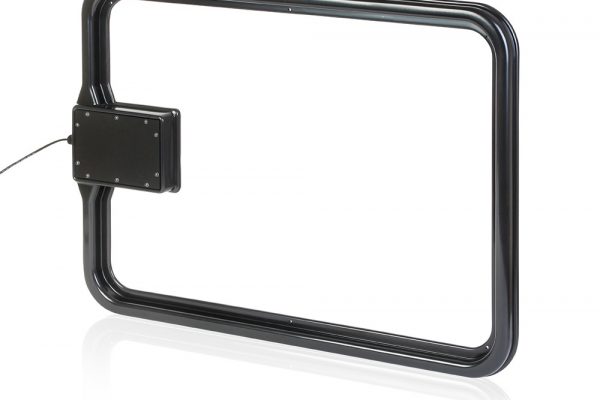

The ID ANT800/600-DA HF Loop Antenna is a versatile and high-performance antenna designed for use with HF readers. With a read range of up to 100 cm and a transmitting power of 8 W, this antenna is capable of delivering reliable and efficient RFID communication. Its easy setup, integrated dynamic antenna tuner, and IP65 protection class make it suitable for various applications.
- Dimensions: 852 mm x 620 mm x 40 mm
- Weight: approximately 2.5 kg
- Housing: Plastic ABS
- Color: Black
- Protection class: IP65
- Operating temperature range: -25 degree C up to +55 degree C
- Storage temperature range: -25 degree C up to +60 degree C
- Relative air humidity: 5% up to 95% (not condensing)
- Operating frequency: 13.56 MHz
- Max. transmitting power: 8 W
- Permitted transmitting power:
- EU (EN 300 330): 4 W
- USA (FCC Part 15): 2 W
- Canada (RSS-210): 2 W
- Read range: up to 100 cm*
- Antenna connection: 1 x SMA plug (50 ohm)
- Antenna connection cable: RG58, 50 ohm, approximately 3.6 m

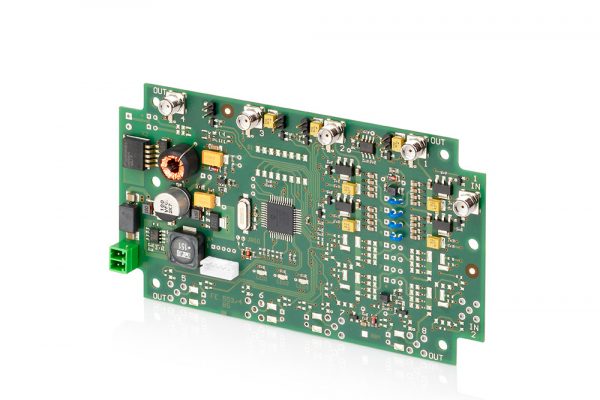

The ID ANT.MUX.M4 is a 4 channel Multiplexer Module designed for switching between RFID antennas operating at a frequency of 13.56 MHz. It allows multiple single antennas and gate solutions to be operated with just one reader. The Multiplexer is controlled via the antenna cable connected to the reader, making installation easy and hassle-free. With non-wearing electronic switches and high switching speed, this Multiplexer ensures efficient and reliable communication between the reader and antennas.
- Dimensions: 137 mm x 77 mm x 15 mm
- Weight: approximately 80 g
- Operating frequency: 13.56 MHz
- Supply voltage: 12 – 24 V DC
- Power consumption: maximum 4.0 W
- Attenuation per channel: maximum 0.5 dB
- Max. perm. switching power: 8 W
- RF connections: 1x input (SMA jack), 4x output (SMA jack)
- RF switches: electronic switches (non-wearing) with switching speed < 1 ms
- Triggering reader: communication via RF input 1
- Signal indicator: 1 x LED per channel, 3 x LED (Run / HF / Communication)
- Temperature range: Operation: -25 degree C to +65 degree C (-13 F to +149 F), Storage: -40 degree C to +80 degree C (-40 F to +176 F)
- Standard conformity: EMC (EN 61000-6-3, EN 61000-6-2), Vibration (EN 60068-2-6, 10 Hz to 150 Hz: 0.075 mm / 1 g), Shock (EN 60068-2-27, Acceleration: 30 g)
