FEIG – ID RWA40.30-USB
The ID RWA40.30-USB is a versatile desktop reader designed for contactless data exchange with common 125 kHz transponders. It is suitable for various office, administration, and industrial applications. With its USB interface, it allows for easy power supply and data exchange with a computer or other equipment. The reader has its own local intelligence, enabling both online and offline operation.
Specification
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 125 kHz
- MTBF: 500,000 h
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Optical indicators: 2 LED (Green: Power and online/offline Blue: Transponder communication)
- Operation mode: Polling-Mode
- Supported transponders: 125 kHz Read Only transponders, 125 kHz Read / Write transponders
- USB CDC device driver: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Vista 32 Bit
- EEPROM: 512 Byte (1 x 106 write cycles)
- FLASH: 128 Byte (firmware update in application possible)
- Temperature range: Operation: -20 degree C up to +60 degree C, Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
Benefits
The ID RWA40.30-USB is a multi-tag reader compatible with all common 125 kHz transponders, making it suitable for various applications such as ticketing, ePayment, and more.
With its USB interface, the reader can be easily connected to a computer or other equipment for power supply and data exchange.
The reader has its own local intelligence, allowing for offline operation and configuration of the most important functions. This ensures continuous functionality even when not connected to a central host.
Related Products
The ID PR101-USB HF Proximity Reader is a compact and versatile reader designed for various applications in retail, industry, logistics, and libraries. It offers an integrated antenna and supports ISO 15693 transponders with an operating frequency of 13.56 MHz. With its anti-collision function, it can read multiple transponders simultaneously, making it efficient and convenient to use. The reader has a maximum read range of 18 cm and can be easily integrated into existing systems.
- Dimensions: 85 mm x 145 mm x 31 mm
- Weight: 200 g
- Housing: Plastic ABS
- Colour: Similar to RAL 9018 (Papyrus white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power: 0.5 W ± 2 dB
- Supply voltage: 5 V DC (via USB)
- Current consumption: Max. 0.5 A
- Power consumption: Max. 2.5 VA
- Antenna: Integrated
- Read range: Max. 18 cm
- Interface: USB 2.0
- Indicators, optical: 1 LED (multicoloured)
- Supported transponders: ISO 15693, (ISO 18000-3 MODE 1)*
- Operation modes: ISO Host Mode, Scan Mode
- Address setting for interface: Device-ID of the reader
- Temperature range:
- Operation: -25 degree C up to +60 degree C
- Storage: -25 degree C up to +70 degree C
- Relative air humidity: 5% up to 95% (non-condensing)

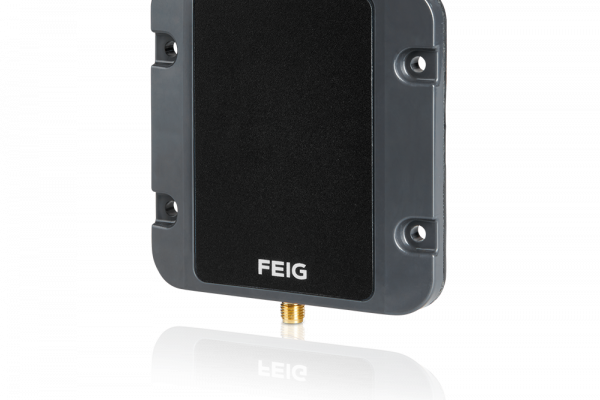

The UHF near-field antenna ID ANT.U82/82 is a compact and high-performance antenna that is ideal for use in enclosed spaces. With its small form factor and defined near-field reading area, it can be installed almost anywhere. It operates in a wide frequency range of 864-928 MHz, making it suitable for worldwide use.
