FEIG – ID MRU102-A / -USB
The ID MRU102-A / -USB is a compact and versatile UHF Universal Reader designed for short to medium read ranges. It features a small form factor with an internal antenna, but can also be connected to up to three external antennas for extended read ranges of up to 4 meters. With variable interfaces (RS232, USB), it can be easily integrated into existing systems. This reader supports the Low Level Reader Protocol (LLRP) and is suitable for a wide range of applications in various industries.
Specification
- Dimensions: 145 mm x 87 mm x 27 mm
- Power supply: 12 to 24 V DC, Power over Ethernet (PoE)
- Power consumption: max. 7 W
- Operating frequencies: EU (865 MHz to 868 MHz), FCC (902 MHz to 928 MHz)
- Output power: 50 mW to 500 mW, configurable
- Antenna connection: 3 x SMA plug (50 ohm), 1x internal antenna
- Interfaces: RS232 (-A) / USB Full Speed (-USB) / Ethernet (-PoE)
- Reader modes: ISO Host Mode, Buffered Read Mode, Scan Mode (-A and -USB), Notification Mode (-PoE)
- Supported transponders: EPC Class1 Gen2, ISO 18000-6-C
- Temperature range: Operation: -25 degree C up to +55 degree C, -25 degree C up to +45 degree C (PoE); Storage: -25 degree C up to +70 degree C
- Relative humidity: 5 % up to 95 % (non-condensing)
Benefits
The ID MRU102-A / -USB achieves read ranges of up to 50 cm with its internal antenna and up to 4 meters with external antennas, providing versatility for different applications.
With two different interface options (RS232, USB), the reader can be easily integrated into existing systems, offering flexibility and compatibility.
The ID MRU102-A / -USB can be used in various industries and applications, including production workstations, self-service stations, industrial systems, and container identification, making it a versatile solution for different needs.
Related Products
The ID SPAD.U is a shielded UHF desktop reader with integrated antennas, designed for contactless data exchange with UHF transponders. With its flat and modern design, it offers maximum reliability and excellent reading performance. It is suitable for various markets, including laundries, libraries, and retail, and can be used for applications such as laundry logistics, library item tracking, and file/document tracking.
- Dimensions: 376 mm x 276 mm x 26.8 mm
- Weight: approximately 2.0 kg
- Housing: Upper part – Plastic ABS, Cover plate – Acrylic glass (PMMA XT), Lower part – Galvanized metal sheet
- Protection class: IP30
- Power supply: 12 to 24 V DC ±15%
- Power consumption: max. 7 VA
- Operating frequency: 865 MHz to 868 MHz
- Transmitting power: 50 mW to 500 mW, configurable in up to 8 steps
- Interface: USB
- Reader modes: ISO Host Mode, Buffered Read Mode, Scan Mode
- Supported transponders: EPC Class1 Gen2, ISO 18000-6-C (optional)
- Indicators: LED green, red, orange (mixed color), Buzzer
- Temperature range: Operation -25 degree C to +55 degree C, Storage -25 degree C to +70 degree C
- Relative humidity: 5% to 95% (non-condensing)
- Radio approval: Europe – EN 302 208, EMC – EN 301 489
- Safety: Low Voltage – EN 62368-1, Human Exposure – EN 50364

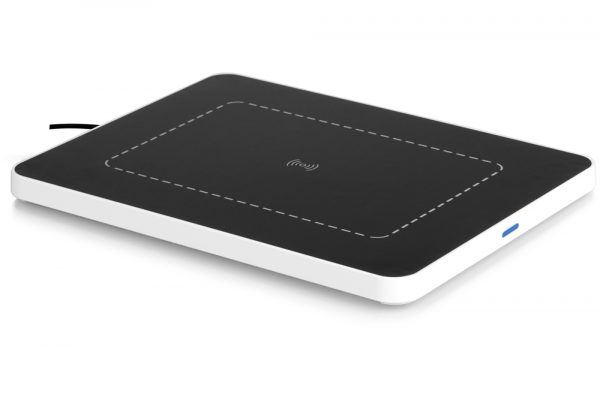

The ID PAD74-U is a compact and powerful USB pad reader designed for contactless data exchange with HF transponders. It features a defined capture window and a read range of up to 19 cm. With support for ISO 15693 and ISO 14443 transponders, it is suitable for applications like access control, user ID card detection, and book/document tracing in libraries and offices. The reader comes with 3 LEDs for optical feedback and is USB powered, making it easy to connect to a laptop or desktop PC.
- Dimensions: 240 mm x 180 mm x 13 mm (9.45 inch x 7.09 inch x 0.51 inch)
- Weight: approx. 0.5 kg (1.2 lbs)
- Housing: Insensitive surface with upper part made of plastic ABS and lower part made of plastic blade
- Color: Pad in black, upper part in similar RAL 9003 (white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Max. transmitting power: 400 mW ±1 dB
- Supply voltage: 5V DC (via USB)
- Power consumption: max. 2.5 W
- Interfaces: USB 2.0
- Indicator, optical: 3 LEDs (green, red, blue)
- Supported transponders: ISO 15693, ISO 14443-A/B, (ISO 18000-3 MODE 1)*
- Reader modes: ISO Host Mode, Scan Mode**
- Temperature range: Operation:-25degree C up to +55degree C (-13F up to 131F), Storage:-25degree C up to +70degree C (-13F up to 158F)
- Relative air humidity: 5% up to 95% (non-condensing)
- Software development kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver: Windows Server 2012 and 2016, Windows 10 and 11; 32/64 Bit
The UHF Mid-Range Antenna ID ANT.U150/150 by FEIG ELECTRONIC GmbH is a robust, compact, and aesthetically pleasing antenna designed for a variety of demanding environments. With a circular polarization that ensures optimal performance and reliable read ranges up to 4 meters, this antenna is ideal for logistics, industrial applications, railway systems, waste management, and retail inventory tracking. Its IP68 protection class makes it suitable for permanent outdoor use, even in harsh industrial settings. The ID ANT.U150/150 features a VESA100 standard mounting for easy installation and is compatible with multiple FEIG UHF readers, making it a versatile solution for efficient asset tracking and inventory management.
- Dimensions: 151 mm x 150 mm x 14.5 mm
- Weight: 230 g
- Housing: ABS, UV resistant, and fire-retardant
- Protection Class: IP68
- Gain: Approximately 5 dBic
- 3 dB Beam Width: 105 x 105
- Polarization: Circular (RHCP)
- Antenna Connector: SMA (female)
- Operating Frequencies:
EU Variant: 865 Mz – 868 MHz
FCC Variant: 902 MHz – 928 MHz
The ID ANT340 / 240 HF Pad Antenna is an elegantly designed, high-performance antenna for contactless data exchange with HF transponders. Ideal for office and library applications, it provides up to a 30 cm read range for seamless file and document tracking. The antenna is built with a sleek, flat profile, making it a versatile choice for desktop use. It comes equipped with a 230 cm coaxial cable and SMA plug, ensuring easy integration with compatible readers. Available in both plastic housing and module form, this antenna offers flexibility for various applications in secure, contactless communication systems.
- Dimensions: 337 mm x 237 mm x 8 mm
- Weight: 530 g
- Material: Plastic ABS housing
- Color: Grey-white
- Protection Class: IP40
- Operating Frequency: 13.56 MHz
- Maximum Transmitting Power:2 W
- Antenna Connection: 1 x SMA plug (50 ohm)
- Cable Length: 230 cm RG58 coaxial cable
- Operating Temperature: 0degree C to +55degree C
- Storage Temperature: -25degree C to +85degree C
- Humidity Range: 5% to 95% (non-condensing)
- Compliance: EMC EN 301 489, Safety EN 62368-1, EN 50364
The Dynamic Antenna Tuner ID DAT is a versatile device designed for automatic tuning and retuning of RFID Long Range Antennas operating at 13.56 MHz. With its easy “Plug & Play” functionality, it eliminates the need for additional tuning devices. The tuner can be driven via HF connection and allows for parameters or calibration status to be sent to the host. It also features an electronic switch to disconnect the antenna circuit when necessary.
- Dimensions: 118 mm x 90 mm x 19 mm
- Weight: approximately 100 g
- Operating frequency: 13.56 MHz
- Supply voltage: 7 – 12 V DC
- Current consumption: maximum 150 mA (DC)
- Transmitting power: maximum 10 W
- Antenna switch: electronic switch (mind maximum antenna power!)
- Antenna connection: cable terminals (d = 2 – 9 mm)
- Reader connection: SMA socket (50 ohm)
- Triggering reader: via RF connection
- Signal indicator: 1 x “Run”-LED (green), 2 x “Protocol”-LED (red)
- Outputs: 3 x open collector: 5 V DC / maximum 15 mA
- Carrier frequency: 13.56 MHz
- Impedance: 50 ohm
- Tuning range inductivity: 0.7 – 2.5 microH
- Quality: 10 – 50
- Temperature range:
- Operation: -25 degree C up to +75 degree C
- Storage: -40 degree C up to +85 degree C
The AT288N by ATID offers unparalleled efficiency in RFID data collection. With its advanced technology, this handheld reader empowers businesses to streamline their inventory management, asset tracking, and supply chain operations with precision and speed. Its ergonomic design ensures comfortable usage, while its robust build guarantees durability in various environments.
Elevate your RFID data collection capabilities with the AT288N by ATID. Engineered to excel in efficiency, this handheld reader revolutionizes inventory management, asset tracking, and supply chain operations. Its cutting-edge technology empowers businesses to capture data with unprecedented speed and accuracy, enhancing overall productivity and decision-making. Designed for user comfort and durability, the AT288N ensures seamless integration into diverse workflows, making it the ultimate solution for optimizing operational efficiency and gaining actionable insights.
- Supported protocols: UHF EPC Gen2, ISO / IEC 18000-6C, 6B, AEI (Rail)
- Connectivity: BT V2.1 + EDR / BLE V4.1
- Compatibility: Windows, Android & iOS Host
- Design: Compact & Handy design
- Drop: spec: 5m (5ft)
- IP65
- Reading Range: ~3M (According to Tag & Environment).
- Battery Life: a 3.7V 2,200mAh Lithium-Ion Battery (Rechargeable).
- Operating Temperature: -10degree C to 45degree C.
- Dimensions: 165mm x 75mm x 29mm
- Weight: 320 grams
