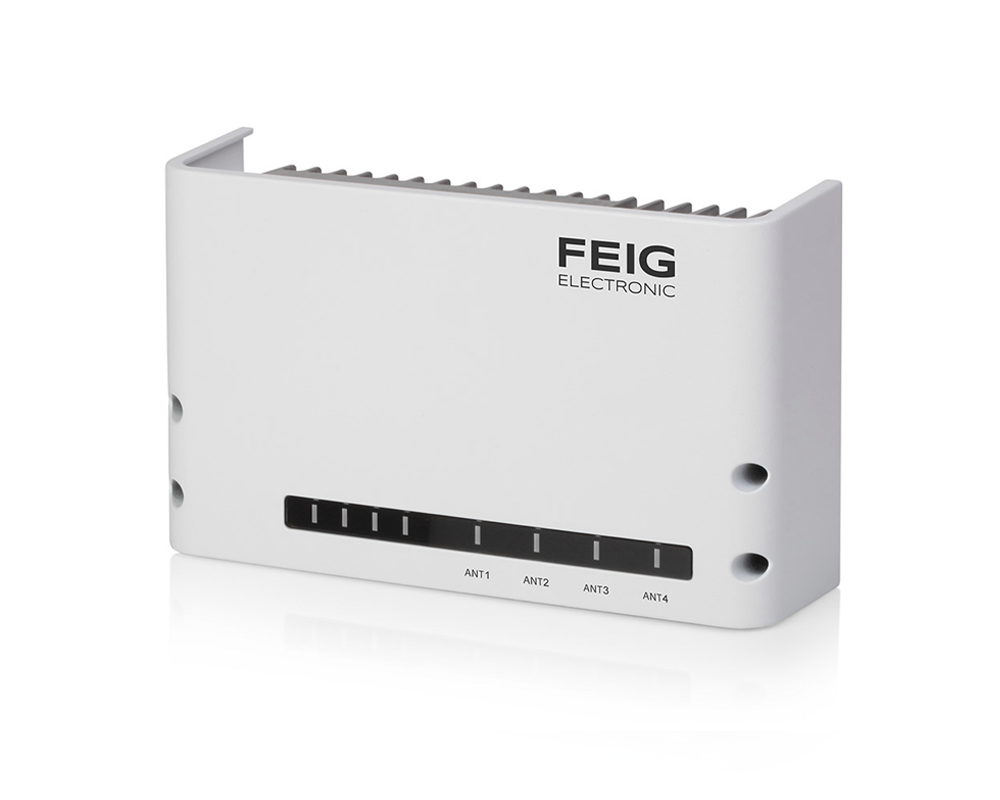

FEIG – ID LRU1002
The UHF Long Range Reader ID LRU1002 is a high-performance reader designed for various applications. With a reading range of up to 12m and 4 antenna connections, it offers excellent tag detection and read range even in challenging environments. It supports transponders according to EPC Class1 Gen2 and ISO 18000-6C, allowing for secure UHF systems. The reader features secure key storage, support for EPC Low Level Reader Protocol, and the ability to read RSSI data and phase angle of identified transponders.
Specification
- Dimensions: 260 mm x 157 mm x 68 mm
- Weight: approx. 1,800 g
- Housing: Aluminum, powder coated
- Protection class: IP53 (IP64 with protection cap*)
- Power supply: 24 V DC ±20%
- Power consumption: max. 24 VA**
- Operating frequencies: Version EU (865 MHz up to 868 MHz), Version FCC (902 MHz up to 928 MHz)
- Output power: 100 mW to max. 2 W configurable in steps of 100 mW
- Antenna connector: 4x SMA-Female (50 Ohm), integrated Multiplexer, support of external Multiplexer ID ISC.ANT.UMUX
- Interfaces: RS232, Ethernet, USB (On-The-Go), Wiegand (Scan Mode Interface)
- Supported transponders: EPC Class1 Gen2, EPC Class1 Gen2 V2, ISO 18000-6C
- Temperature range: Operation:-40 degree C up to +70 degree C***, Storage:-25 degree C up to +85 degree C
Benefits
The reader has high receiver sensitivity, ensuring an enlarged and homogeneous tag detection range, even in disturbed environments and applications with multiple readers operating simultaneously.
The reader supports new transponder chips with encryption, allowing for the realization of secure UHF systems. It also features secure key storage in a secure memory (Secure Element).
The reader supports 4 hardware interface ports (Ethernet, RS232, USB, and Wiegand), providing flexibility and compatibility with various systems and devices.
