FEIG – ID ISC.LR.WS-A
The Wiegand Switch ID ISC.LR.WS-A is a cost-effective and compact solution for multilane vehicle access control installations. With just one UHF reader, it allows for the control of two independent lanes, providing reliable access control and clear cost advantages.
Specification
- Dimensions (w x h x d): 99 mm x 90 mm x 22.5 mm
- Weight: approx. 90 g
- Housing: Polyamide
- Color: RAL7035 (light grey)
- Power supply: 12 up to 24 V DC ±20%
- Power consumption: typ. < 2 W
- Supported readers: ID LRU1002, ID LRU500i-BD (further readers on request)
- Indicator: 2 green LED indicate the active Wiegand output
- Other features: Housing for DIN Rail Mounting, Signal improvement in case of communication problems between Access Control Panel and Reader
- Temperature range: Operation:-25 degree C up to +55 degree C, Storage:-40 degree C up to +85 degree C
- Humidity: 5% up to 95% (non-condensing)
- Vibration: EN 60068-2-6 10 Hz up to 150 Hz: 0.075 mm/1 g
- Shock: EN 60068-2-27 Acceleration: 30 g
- EMC: EN 301 489
- Safety: EN 62 368
Benefits
The Wiegand Switch allows for the control of two lanes with just one reader, providing clear cost advantages for multilane vehicle access control installations.
The compact housing of the Wiegand Switch is designed for DIN rail mounting, making it quick and easy to install.
With automatic signal improvement in case of communication problems between the access control panel and reader, the Wiegand Switch ensures reliable access control for two independent lanes.
Related Products

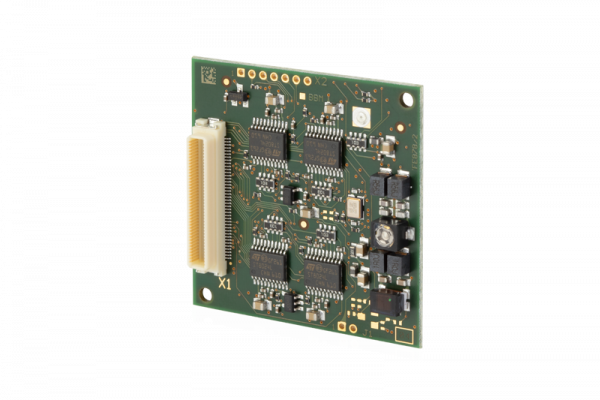

The ID CPR60 is a compact RFID reader module designed for integration into terminals, printers, and handheld devices. It supports contactless smart cards and transponders according to ISO/IEC 14443 A/B and ISO 15693 standards. With interfaces for up to 4 smart card connectors, it is ideal for ticket applications in public transport.
- Dimensions: 41 mm x 41 mm x 6.5 mm
- Weight: approximately 10 g
- Temperature range: Operation: -25 degree C up to +70 degree C, Storage: -40 degree C up to +85 degree C
- Relative humidity: maximum 95% (not condensing)
- Power supply: 3.3 V DC + 5% for digital circuit, 5 V DC + 5% for analog circuit
- Interfaces: USB Full-Speed (12 MBit/s), SPI (up to 16 MBit/s), RS232-LVTTL (4,800-921,600 Baud)
- Supported transponders: mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG Tag-It HFI, Fujitsu MB89R11x, STM24LRx, STMLRI2k, I-Code SLI/SLIX, NFC Devices in Card Emulation Mode (Tag Type 1 … 5)
- RFID Interface: ISO 14443-A/-B (ISO-Mode: 106 … 848 kBit/s; EMVCo Mode: 106 kBit/s), ISO 15693
- Operating frequency: 13.56 MHz
- Transmitting power: typ. 450 mW
- Antenna connection: U.FL Socket for external 50 Ohm antenna
- Contact Interface: ISO 7816-4 SAM card interfaces, T=0 and T=1 protocol, Power class A, B & C
- Standard conformity: Radio Approval (Europe: EN 300 330, North America: FCC, IC), EMC (EN 301 489), Safety & Health (EN 62368-1, EN 50364), Waste and (WEEE – 2002/96/EC, RoHS – 2002/95/EC)

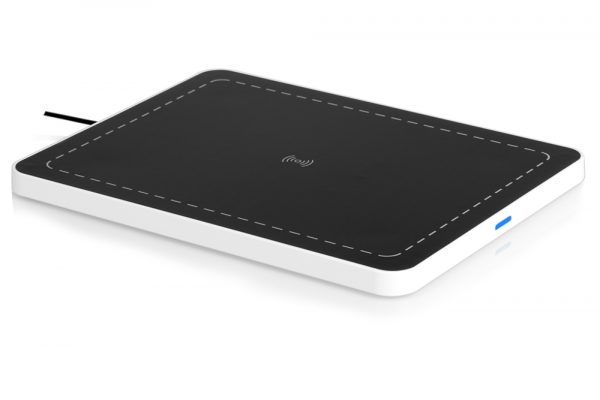

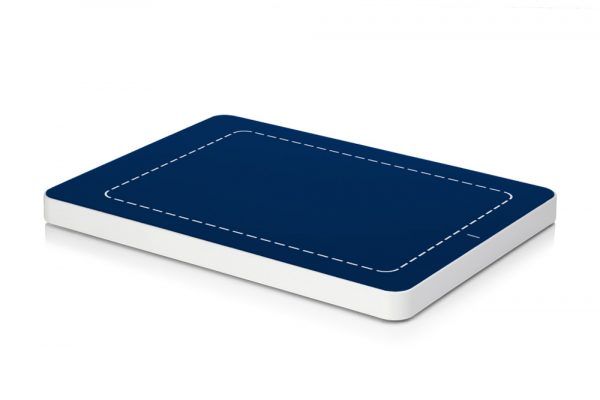

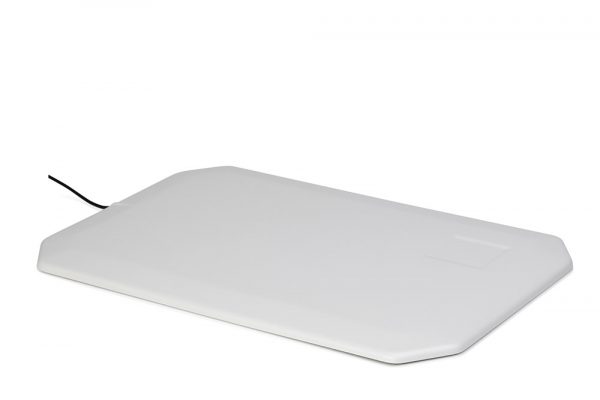

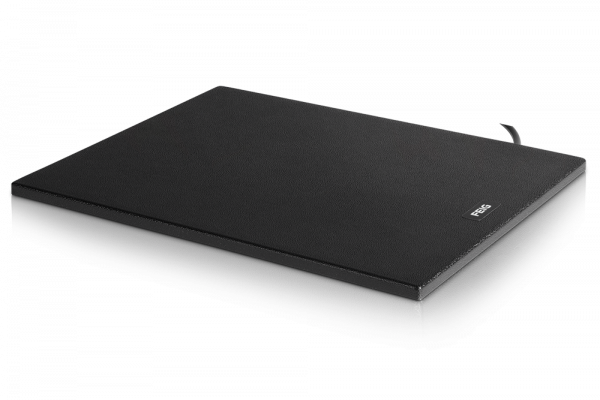

The Shielded HF Pad Antenna, ID ANTS370/270-A and ID SPAD102, is a contactless data exchange antenna designed for desktop applications in offices and libraries. It allows for traceability of files and documents, as well as detection of lendable items at check out or return points. With a read range of over 30 cm, these antennas offer outstanding performance and modern design.
- Dimensions: 376 mm x 276 mm x 27 mm (14.8 inch x 10.0 inch x 1 inch)
- Weight: approx. 2.0 kg (4.4 lbs)
- Housing: Acrylic glass pad, plastic SB upper part, zinced steel lower part
- Color: Transparent or black pad, similar RAL 9003 (white) upper part
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Max. transmitting power:5 W
- Antenna connection: RG58 coaxial cable with SMA connector (50 ohm); approx. 2.3m long
- Indicator, optical: 1 LED (blue; switchable via DC voltage at the antenna output of the reader)
- Temperature range: Operation: -25 degree C up to +55 degree C (-13 F up to 131 F), Storage: -25 degree C up to +70 degree C (-13 F up to 158 F)
- Relative air humidity: 5% up to 95% (non-condensing)
The ID RWA40.30-USB is a versatile desktop reader designed for contactless data exchange with common 125 kHz transponders. It is suitable for various office, administration, and industrial applications. With its USB interface, it allows for easy power supply and data exchange with a computer or other equipment. The reader has its own local intelligence, enabling both online and offline operation.
- Dimensions: 144 mm x 84 mm x 18 mm
- Weight: approximately 105 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- Operating frequency: 125 kHz
- MTBF: 500,000 h
- Supply voltage: 5 V, USB Bus powered
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: USB Full-Speed (12 MBit/s)
- Optical indicators: 2 LED (Green: Power and online/offline Blue: Transponder communication)
- Operation mode: Polling-Mode
- Supported transponders: 125 kHz Read Only transponders, 125 kHz Read / Write transponders
- USB CDC device driver: Windows 2000 SP4, Windows Server 2003, Windows XP SP2, Vista 32 Bit
- EEPROM: 512 Byte (1 x 106 write cycles)
- FLASH: 128 Byte (firmware update in application possible)
- Temperature range: Operation: -20 degree C up to +60 degree C, Storage: -40 degree C up to +85 degree C
- Relative air humidity: max. 95% (non-condensing)
The HF Mid Range Reader ID MR102 is a compact multitag reader designed for various applications. It operates at a frequency of 13.56 MHz and can identify transponders according to ISO 15693. With a read range of up to 40 cm, it is suitable for middle-range applications. The reader features an anti-collision function, allowing it to read up to 30 transponders simultaneously. It offers numerous communication interfaces, including Ethernet (TCP/IP), USB, and RS232, making it easy to integrate into existing systems. The ID MR102 is available in both module and housing versions, with the housing version being suitable for industrial environments. It is ideal for use in retail, industry, logistics, and libraries.
- Dimensions: 85 mm x 145 mm x 31 mm
- Weight: 200 g
- Housing: Plastic ABS
- Color: Similar to RAL 9018 (Papyrus white)
- Protection class: IP30
- Operating frequency: 13.56 MHz
- Transmitting power:2 W ± 1 dB
- Power supply:
- ID MR102-A/-USB: 12 up to 24 V DC
- ID MR102-PoE: 12 up to 24 V DC or PoE
- Power consumption: Max. 6 W
- Antenna connector: 1 x SMA connector (50 ohm)
- Supply voltage at antenna output: 7.5 V DC (max. 5 mA)
- Interfaces:
- ID MR102-A: RS232
- ID MR102-PoE: Ethernet (TCP/IP)
- ID MR102-USB: USB 2.0
- Indicators, optical: 1 LED (multicolored)
- Supported transponders: ISO 15693 / ISO 18000-3 Mode 1*, ISO 18000-3 Mode 3
- Reader modes: ISO Host Mode, Scan Mode, Notification Mode
- Others: Antenna shortcut detection, Temperature control, Full support of the external multiplexer ID ANT.MUX
- Temperature range:
- Operation: -25 degree C up to +55 degree C
- Storage: -25 degree C up to +85 degree C
- Relative air humidity: 5% up to 95% (non-condensing)
The ID CPR40.30-A is a versatile desktop reader designed for contactless data exchange with common transponders according to ISO14443-A and ISO14443-B, as well as NFC devices according to ISO 18092. It is ideal for various desktop applications such as eTicketing, eDocument, loyalty cards, and public transport. With its “SoftCrypto” and “SAMCrypto high level” functions, it provides a comfortable and fast interface for accessing encrypted data of mifare DESFire EV1, mifare PLUS, and mifare Ultralight C.
- Dimensions (w x h x d): 144 mm x 84 mm x 18 mm
- Weight: approx. 260 g
- Housing: Plastic (ASA) / Acrylic glass
- Color: white / black
- Protection class: IP42
- RFID Interface: ISO 14443-A/-B (106 – 848 kBit/s)
- Operating frequency: 13.56 MHz
- Transmitting power: 100 mW
- MTBF: 500,000 h
- Supply voltage: 5 V DC ± 10 % ripple
- Current consumption: max. 140 mA
- Antenna: integrated
- Interface: RS232 (4,800 up to 230,400 Baud)
- Indicators, optical: 2 LED (green / blue)
- Contact interface: ISO 7816
- Operation modes: Polling-Mode, Scan-Mode
- Supported transponders: mifare classic, mifare UltraLight, mifare DESFire, mifare PLUS, mifare UltraLight C, my-d move, JewelTM, FeliCa, NTAG, mifare/NTAG Ev2 Crypto, NFC Devices in Card Emulation Mode (Tag Type 1 … 4)
- Software Development Kits: Windows (C++, .NET, Java), LINUX (C++, Java), Raspberry Pi
- USB driver, PC/SC driver: Windows Server 2012 and 2016, Windows 7, 8 and 10; 32 / 64 Bit
- Temperature range:
- Operation:-20 degree C up to +60 degree C
2. Storage:-40degree C up to +85 degree C - Relative air humidity: max. 95% (non-condensing)
- Standard conformity:
- Radio license: Europe – EN 300 330
2. EMC: EN 301 489
3. Safety & Health: EN 60950, EN 50364
4. Environment: RoHS-2002/95/EC, WEEE-2002/96/EC - Order descriptions: ID CPR40.30-A – Desktop Reader RS232
- Scope of delivery: ID CPR40.30-A, 2.5 m cable (permanently mounted) for power supply (5.5 mm coaxial connector) and interface (9-pin D-Sub connector), Installation manual

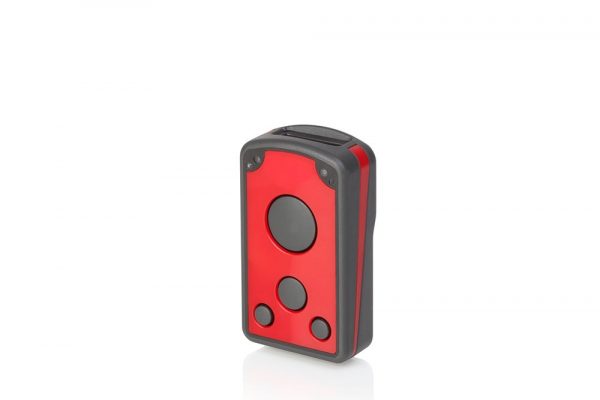

The ATS200 is a sophisticated RFID handheld reader designed for seamless data collection and management in diverse industries. Its ergonomic design coupled with robust performance makes it an indispensable tool for inventory management, asset tracking, and logistics operations. With its intuitive interface and high-speed data processing capabilities, the ATS200 elevates operational efficiency to new heights.
