FEIG – HyWEAR compact xT

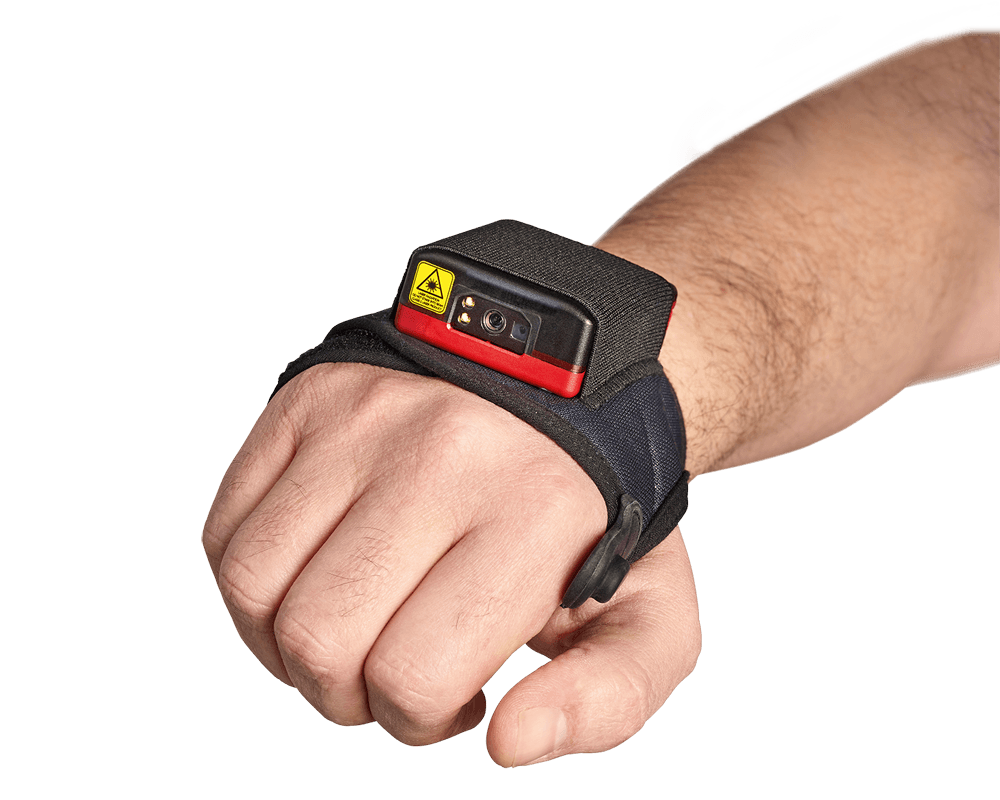

The HyWEAR compact xT is an extended barcode wearable that combines a compact barcode scanner with a powerful scan engine. It is designed to improve efficiency in logistical processes by freeing up both hands for work. The device is ergonomic, easy to integrate into existing processes, and equipped with customizable buttons and feedback LEDs for maximum process reliability.
Specification
- Housing: Robust ABS material
- Dimensions: 60 mm x 50 mm x 23 mm
- Weight: Approximately 70 g
- Color: Black (translucent)/red
- Protection class: IP54
- Image resolution: 1,280 x 800 Pixel
- Reading field of view: 48 x 30
- Aimer: 655 nm Laser
- Barcode decoding: Supports 1D barcodes (EAN-8, EAN-13, UPC-A, UPC-E, Code 128, Code 39, Code 93, Interleaved 2of5) and 2D barcodes (DataMatrix, QR Code, PDF417, Aztec, Dotcode)
- Radio functions: Bluetooth 5.0 (HID, SPP) and WiFi 2.4 GHz/5 GHz (IEEE 802.11 a/b/g/n/h, WPA/WPA2 PSK, WPA2 Enterprise)
- Signal indicator: Status LEDs (red/green/yellow/blue), buzzer, and vibration feedback
- Battery: 1100 mAh Lithium-Polymer, 3.7 V
- Standard range: Supports various barcode types at different distances (e.g., Code 39 – 3 mil: 7.6 cm to 14.7 cm, QR Code – 20 mil: 2.8 cm to 44.5 cm)
- Environmental conditions: Operating temperature -20 degree C to 55 degree C, storage temperature -25 degree C to 85 degree C, humidity 5% to 95%, drop resistance5 m drop to concrete, 500 rollovers from a height of 50 cm
- Standard conformity: Radio license (EN 300 328, FCC 47 CFR Part 15), EMC (EN 301 489), Safety (EN 62368, EN 50364), Others (RoHS, WEEE)
Benefits
The HyWEAR compact xT allows users to perform manual material handling processes more efficiently by freeing up both hands for work, improving productivity and reducing errors.
The device is designed to be ergonomic and can be comfortably used with different working gloves, ensuring user comfort and minimizing fatigue during long work shifts.
The HyWEAR compact xT can be easily integrated into existing processes using Bluetooth or WiFi connectivity. It features customizable buttons, feedback LEDs, and vibration feedback for maximum process reliability and ease of use.
