Showing all 10 results

•

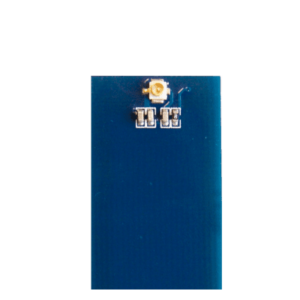

  HF | MF | Desfire Embedded Antennas

  The HF Embedded Antennas are designed for HF frequency areas and are perfect for integration into mobile devices, self-checkout systems, or mobile terminals. These antennas are available in 7 different sizes, making them suitable for various systems and solutions. They can be used for applications such as ticketing, payment, access control, and mobile terminals. The HF Embedded Antennas support HF frequency at 13.56 MHz and have an impedance of 50 Ohms.

  They come with U.FL or 2-pin Molex connectors. These antennas are available in on or off metal versions and can be customized according to customer requirements. Additionally, the FLEX PCB Antennas are flexible and can be used on curved or angular surfaces.

  View Details
•

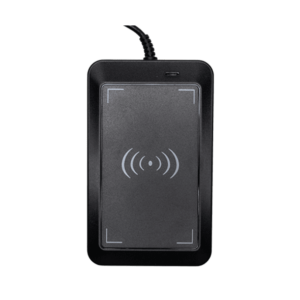

  HF | NFC | LF Desktop Reader NEO 2

  The HF | NFC | LEGIC | LF Desktop Reader NEO 2 is a versatile and modern RFID read and write device that is perfect for a wide range of applications in various industries. With its plug-and-play functionality and USB 2.0 interface, it is easy to integrate into existing systems. This RFID reader supports HF | NFC, LEGIC, and LF versions, allowing it to read and write various transponders and tags, including MIFARE® Classic, MIFARE® DESFire, NTAG, EMxxxx, I-Code ILT-M, LEGIC Advant + Prime chips, EM4200, Hitag-1, and Hitag-S chips. It is certified according to RoHS 2 and REACH, ensuring compliance with environmental regulations.

  The reader comes with a software development kit for Windows systems, making it convenient for developers to connect to their existing systems. With its compact size and lightweight design, the HF | NFC | LEGIC | LF Desktop Reader NEO 2 is the ideal choice for IoT applications in companies and offers reliable and efficient RFID reading and writing capabilities.

  View Details
•

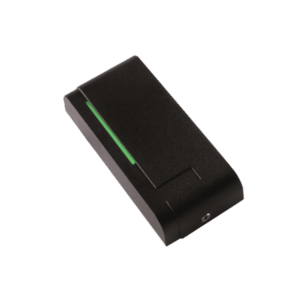

  HF | NFC Access Reader NEO

  The HF | NFC Access Reader NEO is a sleek and compact RFID read/write device with an integrated antenna. It supports standard ISO 14443 A/B and ISO 15693 and can read and write various MIFARE transponders such as Classic Mini, 1K and 4K, Plus, SMART, DESFire, Ultralight, and NTAG. With a reading range of up to 5 centimeters, this versatile device is suitable for applications like employee identification on production lines and access/time logging systems. It comes with a useful SDK for easy development of controller applications and includes a Windows-based demo application.

  View Details
•

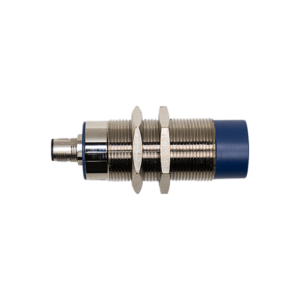

  HF | NFC Cylindrical Reader BLUEBOX

  The HF | NFC Cylindrical Reader BLUEBOX is a compact and fixed UHF RFID reader designed for industrial automation processes. It is commonly used in production lines, conveyor belt systems, and for tool attachment identification in construction, municipal, and farming vehicles. With a reading distance of up to 8 centimeters, this reader offers reliable and efficient identification within industrial environments. It comes with a RS232 or RS485 interface and a power supply of 24 V, allowing for easy integration into existing applications.

  The reader is housed in a compact cylindrical housing with standardized M12 connectors, making installation quick and simple. The BLUEBOX SDK, along with demo and setup tools, supports the reader and offers compatibility with various operating systems. The firmware and hardware can also be customized on request, making it a versatile solution for a wide range of industrial automation needs.

  View Details
•

  HF | NFC Stick Reader EVO

  The HF | NFC Stick Reader EVO is a versatile and modern RFID read and write device with integrated HID and VCP modes and a USB 2.0 interface. It is perfect for IoT applications in various industries such as ecommerce, telecom, postal, banking, and healthcare. This plug-and-play device supports ISO standards ISO/IEC 14443A/B, ISO 15693, and ISO 18000-3M3, allowing it to read transponders and tags with MIFARE® Classic, MIFARE® DESFire, NTAG, EMxxxx, and I-Code ILTM chip. It is certified according to RoHS 2 and REACH and comes with a software development kit for Windows systems, making it easy to integrate into existing systems.

  View Details
•

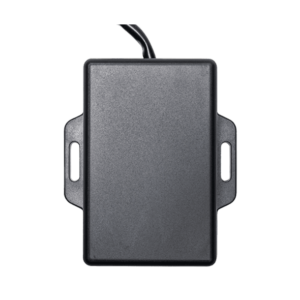

  IGNITE-SMART Reader

  The IGNITE-SMART Reader is a battery-powered smart RFID reader designed for E-Mobility vehicles such as electric scooters, cars, and e-bikes. It serves as a lock for these vehicles, providing a secure and convenient way to start and stop the engine without the need for an ignition key. With its integrated HF and NFC reader, it supports DESFire and NFC tags and transponders, allowing for easy programming of RFID keys. The reader automatically detects a valid RFID key, wakes up the ECU, and sends the key number to the ECU. It communicates with a CANbus interface, making it compatible with a wide range of vehicles. The IGNITE-SMART Reader is built to withstand demanding outdoor usage with its IP64 protection class and can operate in temperature fluctuations from -10 degree C to +50 degree C. It is certified according to RoHS 2 and REACH, and comes with a software development kit for easy integration into existing systems.

  View Details
•

  LEGIC Embedded Module M800

  The LEGIC Embedded Module M800 is a versatile RFID module designed to support LEGIC Prime, LEGIC Advant, ISO 15693, and ISO 14443A/B transponders. With its external antenna, it offers a reading distance of up to 8 cm. This module is perfect for stand-alone operation, as it comes pre-programmed with custom-specific software. It features both TTL and USB interfaces, making it compatible with a wide range of devices. The LEGIC Embedded Module M800 is ideal for applications such as payment, access control, and ticketing.

  With its compact dimensions of 31 x 26 x 3 mm and weight of 13 g, it is easy to integrate into various systems. It also meets the necessary environmental and safety standards, ensuring reliable performance in various conditions. With the included LEGIC or iDTRONIC SDK, developers can easily integrate this module into their applications, making it a convenient and efficient solution for RFID-based systems.

  View Details
•

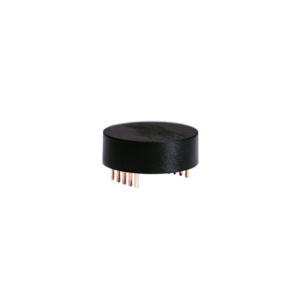

  LF Embedded Reader R810

  The iDTRONIC LF Embedded Reader R810 is a compact 125 kHz RFID reader designed for read-only type tags. With its integrated antenna and TTL interface, this reader is perfect for applications such as access control, production control, and identification. Its small form factor (diameter 30 mm) and sealed plastic housing filled with epoxy resin make it durable and suitable for various environments. The reader supports read-only RFID options like the EM 4200 tag.

  View Details
•

  UHF Cylindrical Reader BLUEBOX

  The UHF Cylindrical Reader BLUEBOX is a compact and fixed all-in-one RFID reader designed for industrial automation processes. It is commonly used in production lines and conveyor belt systems for tasks such as material handling, tracking and tracing, attachment identification, and production control. With its integrated circular antenna and a gain of -8 dBi, this reader can achieve reading distances of up to 40 centimeters within industrial environments.

  The device comes with a variety of communication interfaces, including RS232, RS485, and CANbus, allowing for flexible integration into existing applications. Its easy-to-install cylindrical housing and standardized M12 connectors further simplify the integration process. The UHF Cylindrical Reader BLUEBOX supports the BLUEBOX SDK, offering demo and setup tools for easy integration into any environment. With its wide range of applications and user-friendly features, this reader is a reliable and efficient solution for industrial automation processes.

  View Details
•

  UHF Short Range Reader BLUEBOX

  The UHF Short Range Reader BLUEBOX is a versatile RFID device designed for industrial applications. It operates in the 840 MHz to 960 MHz frequency band and communicates with a host system through a RS232/RS485 serial line. With its integrated antenna and upgradeable firmware, this reader offers reliable and efficient read and write capabilities for UHF RFID tags. It is suitable for a wide range of applications including parking automation, logistics, robotics, and data collection.

  The BLUEBOX is compact in size and features a robust construction with IP65 protection, making it ideal for use in harsh environments. Its easy installation and maintenance, along with its ability to configure functional parameters and upgrade firmware, make it a convenient choice for professionals in the field.

  View Details
