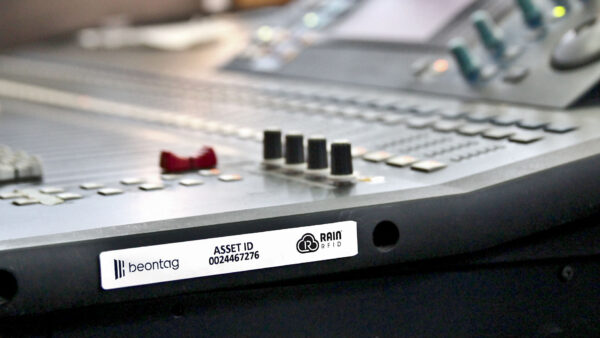

Beontag – Silverline Slim II
The Beontag Silverline Slim II is an on-metal RFID label that offers excellent performance on various surfaces. With its narrow form factor, this label is designed to be versatile and efficient. It is a Class 1 Generation 2 passive UHF RFID transponder that operates on the EPCGlobal Class1 Gen2 ISO 18000inches6C air interface protocol. The label features the Impinj Monza R6inchesP IC type and has a memory configuration of EPC 96/128 bit; User 32/64 bit; TID 96 bit. Each label contains a unique random 96-bit EPC in its EPC memory content. The Beontag Silverline Slim II offers impressive read ranges on different surfaces, with up to 7 meters on metal, 4 meters on plastic, and 4 meters on liquid in the ETSI frequency range. In the FCC frequency range, it provides up to 7 meters on metal, 8 meters on plastic, and 2 meters on liquid. This label is optimized for metal but can work on any surface. It can be attached to curved surfaces, and the installation instructions provide guidance on proper attachment.
The label is printable with a white PET surface and uses a high-performance acrylic adhesive optimized for metal and painted metal surfaces. It weighs 0.7 grams and comes in a delivery format of 600 good labels on a reel, with bad ones marked with “XXX” printing. The Beontag Silverline Slim II is compatible with the Custom Zebra ZT410 RFID Silverline and ZT411 On Metal printers. It is designed to withstand various environmental conditions, with an operating temperature range of -35degree C to +85degree C, peak temperature tolerance of +110degree C for 10 minutes, and IP68 water resistance for up to 5 hours in 1-meter deep water. The label is also resistant to industrial washing with standard solvents and has no physical or performance changes when exposed to motor oil, saltwater, sulfuric acid, or sodium hydroxide. It can be wiped with acetone without any impact. The Beontag Silverline Slim II has a storage condition recommendation of 1 year in +20degree C / 50% RH, and its suitability for different environmental conditions should be tested. Overall, this RFID label offers reliable and efficient tracking and identification capabilities for a wide range of applications.
Specification
Benefits
The Beontag Silverline Slim II™ RFID label delivers outstanding performance on different surfaces, making it suitable for a wide range of applications.
With its narrow form factor, this label can be easily attached to various assets, providing efficient tracking and identification capabilities.
The Beontag Silverline Slim II™ is designed to withstand challenging environmental conditions, including temperature extremes, water exposure, and industrial washing. It offers long-lasting performance and durability.
Related Products

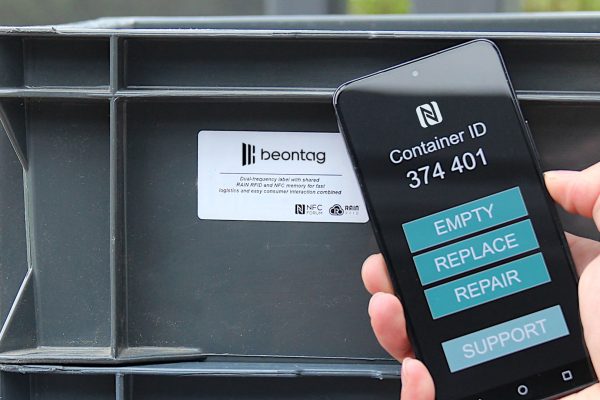

The Beontag Carrier Dual is a versatile dual-frequency label designed for logistics and consumer interaction. This label combines RAIN RFID and NFC memory, making it suitable for a wide range of applications. With its RAIN RFID / EPCglobal Gen2v2 and NFC Forum Type 5 compatibility, it can be used with various air interface protocols. The label operates at different frequencies, with RAIN RFID at 865-928 MHz and NFC at 13.56 MHz. It features the EM Microelectronic EM4425 IC, which offers different memory configurations depending on the version. The label has a read range of up to 11m on cardboard and up to 10m on plastic for RAIN RFID, while for HF/NFC, it can be read by a mobile phone up to 3cm away or by a fixed reader up to 60cm away. The Beontag Carrier Dual is designed for non-metallic surfaces and is made of printable white PET with a high-performance acrylic adhesive.
It weighs less than 1g and comes in a delivery format of 1000 pcs/reel. With its excellent environmental resistance, including water resistance (tested for 5 hours in 1m deep water) and chemical resistance (no physical or performance changes after exposure to motor oil, salt water, sulfuric acid, NaOH, and acetone), this label is built to withstand harsh conditions. It has an operating temperature range of -35degree C to +85degree C and an expected lifetime of years in normal operating conditions. The Beontag Carrier Dual can be personalized with customer-specific encoding and visual marking, making it highly customizable. It is also printer compliant with the Zebra ZT411 printer.

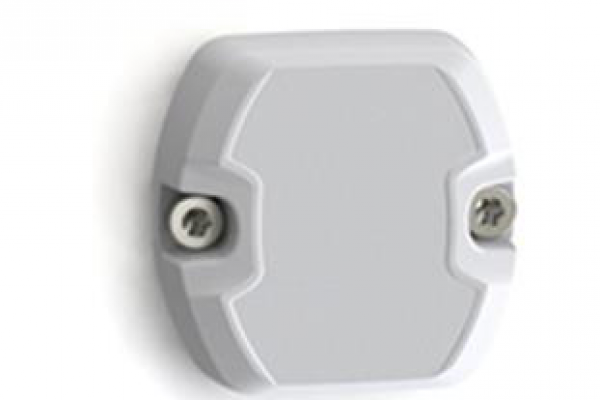

The Beontag Viking Classic Quuppa is an advanced Bluetooth Low Energy beacon that integrates seamlessly with the Quuppa positioning system using the latest angle-of-arrival (AoA) technology. This compact, durable device delivers exceptional performance in real-time tracking and environmental adaptability. Approved by Quuppa, it operates within the ISM band (2401-2482 MHz) and boasts extensive wireless interface compatibility. Featuring advanced sensors and robust environmental resistance, the Viking Classic Quuppa ensures reliable performance for industrial, commercial, and logistical applications. Its IP69K-rated housing ensures it withstands tough conditions, making it a versatile solution for diverse operational needs.

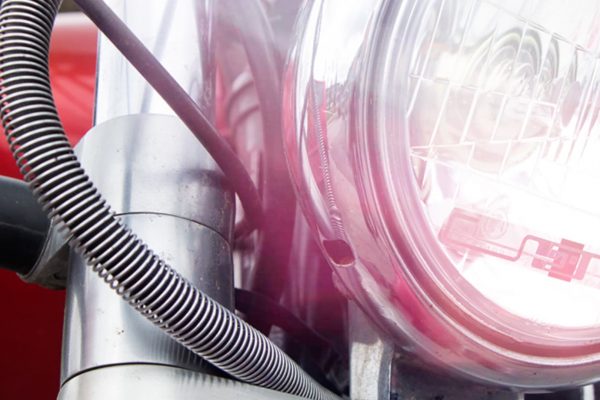

The Beontag Cruiser Headlamp is a non-transferable tamper-proof label designed specifically for vehicle headlamps and windshields. This UHF RFID / EPCglobal Gen2v2 device offers a read range of up to 9 meters (ETSI) or 10.5 meters (FCC), making it ideal for tracking and identification purposes. With its Impinj Monza 4E IC, the label provides a memory configuration of EPC 496 bit, User 128 bit, and TID 96 bit. The tag materials include an aluminum antenna with acrylic adhesive on the back side and inkjet and thermal printable transparent PET on the front side. With a weight of less than 1 gram, the Beontag Cruiser Headlamp is lightweight and easy to install.
It comes in a delivery format of 1000 pcs on a reel, with a pitch on reel of 22.86 mm and a reel core inner diameter of 76 mm. The tag dimensions are 90 x 11.5 x 0.2 mm. This tamper-proof label is resistant to various environmental conditions, including operating temperatures ranging from -35degree C to +85degree C, and exposure to salt water, motor oil, windshield washing fluid, and more. With options for pre-encoding, customized full-color artwork, and customer-specific visual printing, the Beontag Cruiser Headlamp offers flexibility and personalization.
The Beontag Carrier Classic is a special washable label designed for returnable plastic containers. With its strong adhesive, this label ensures secure attachment to the containers. It operates on UHF RFID / EPCglobal Gen2v2 technology, with an operational frequency of 860-960MHz. It offers different memory configurations depending on the IC type, with read ranges of up to 10m on plastic and 4m on cardboard.
The tag is suitable for non-metallic surfaces and is resistant to water, washing, and various chemicals. With its customizable options for pre-encoding and printing, the Beontag Carrier Classic provides a reliable and versatile solution for asset identification and tracking.

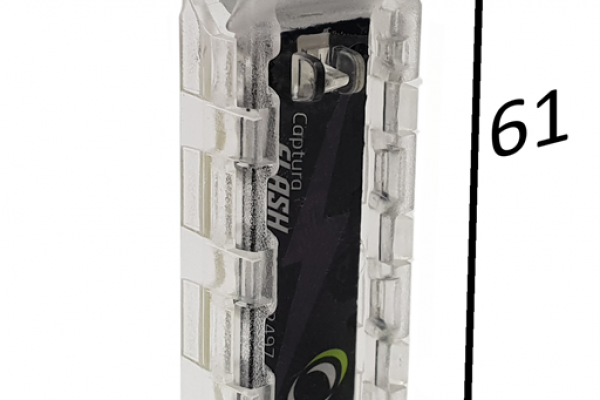

The Beontag Captura Flash is a fast-to-attach tamper-proof seal tag designed for logistics applications. It features a durable enclosure and is equipped with RAIN RFID / EPCglobal Gen2v2 technology. With an operational frequency of 865 – 928 MHz and an NXP UCODE 8m IC type, this tag offers reliable performance.
It has a memory configuration of EPC 96 bit, User 32 bit, and TID 96 bit, with a unique number encoded as a default in the EPC memory. The tag can be attached to assets with a maximum diameter of 12mm and has a read range of up to 12m when hanging from metal.

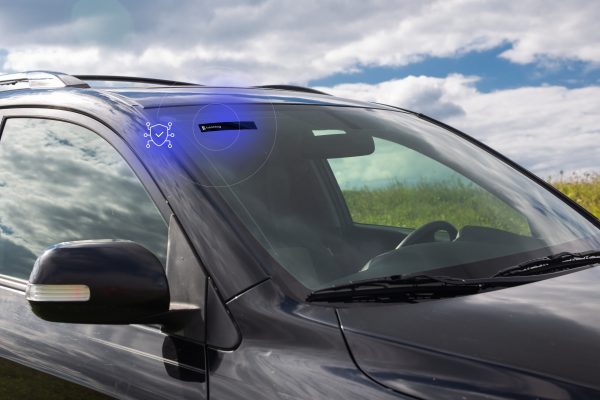

The Cruiser Windshield Crypto is an advanced RFID windshield tag designed for secure and efficient vehicle identification. Employing cutting-edge cryptographic technology, it ensures enhanced security against cloning and unauthorized access. With a sleek design and easy installation, it’s ideal for various applications including toll collection, parking management, and access control.
The Cruiser Windshield Crypto is a non-transferable tamper-proof label designed specifically for car windshields. It utilizes UHF RFID technology with an operational frequency of 860-960MHz. The label features the NXP UCODE DNA IC, which allows for a memory configuration of up to 224 bits for EPC, 3072 bits for user data, and 96 bits for TID. With a read range of up to 10 meters (ETSI) or 8 meters (FCC), the label is suitable for use on glass surfaces.
